Welcome to the first chapter of our “How To” blog series on rebuilding the Lagun FTV-2 vertical mill. At Lagun Engineering, we take pride in the durability and longevity of our machines. However, even the sturdiest machines can fall victim to neglect and improper care over time. If you’ve recently acquired a used FTV-2 and are looking to restore it to its former glory, you’re in the right place. Follow along as we guide you through the proper steps to disassemble your mill the Lagun way. Remember, this is just the beginning; more insights will follow as we continue the rebuilding process ourselves. Stay tuned for a meticulous walkthrough, ensuring your mill operates with precision and efficiency, just like it was designed to.
-

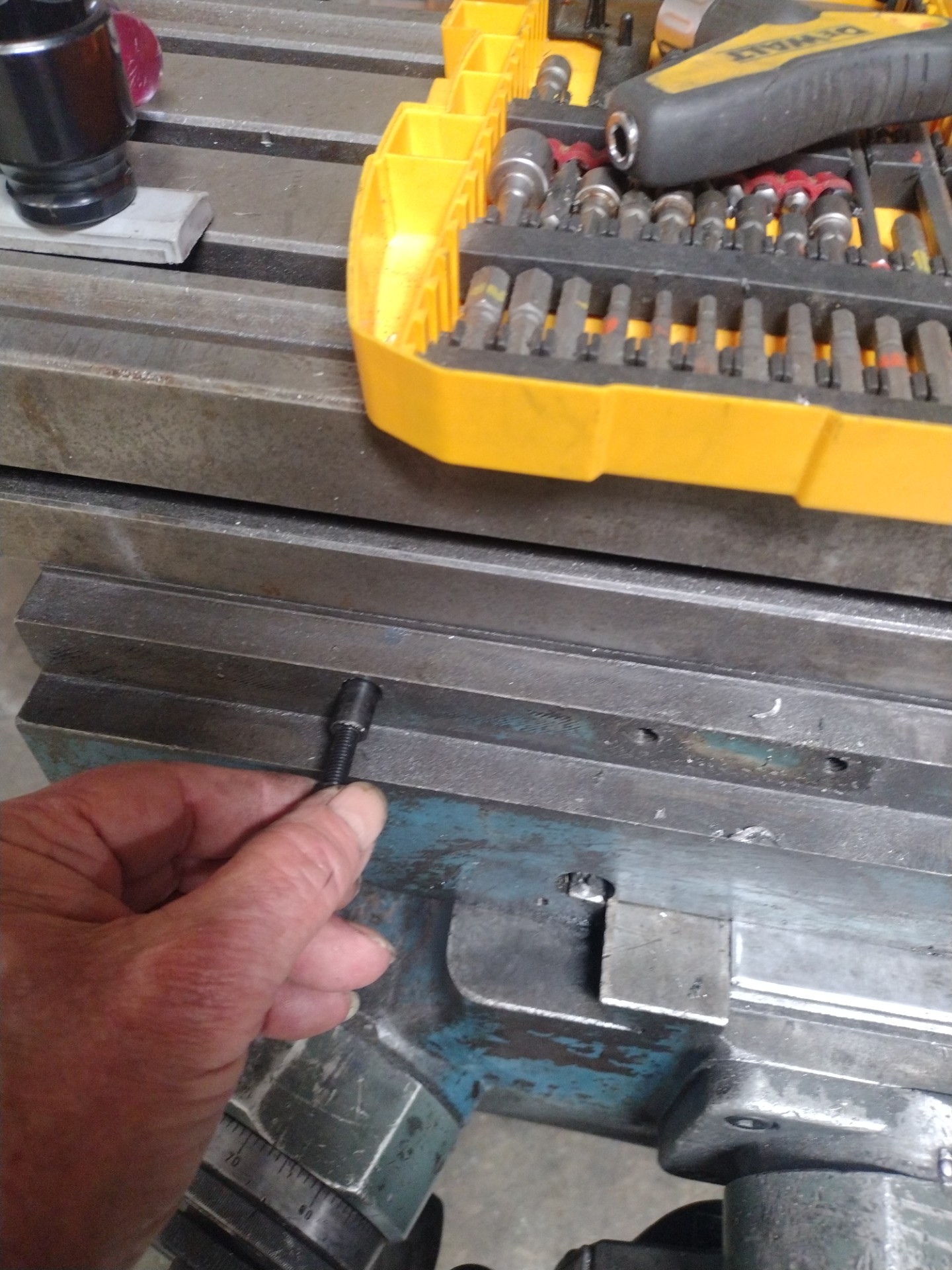

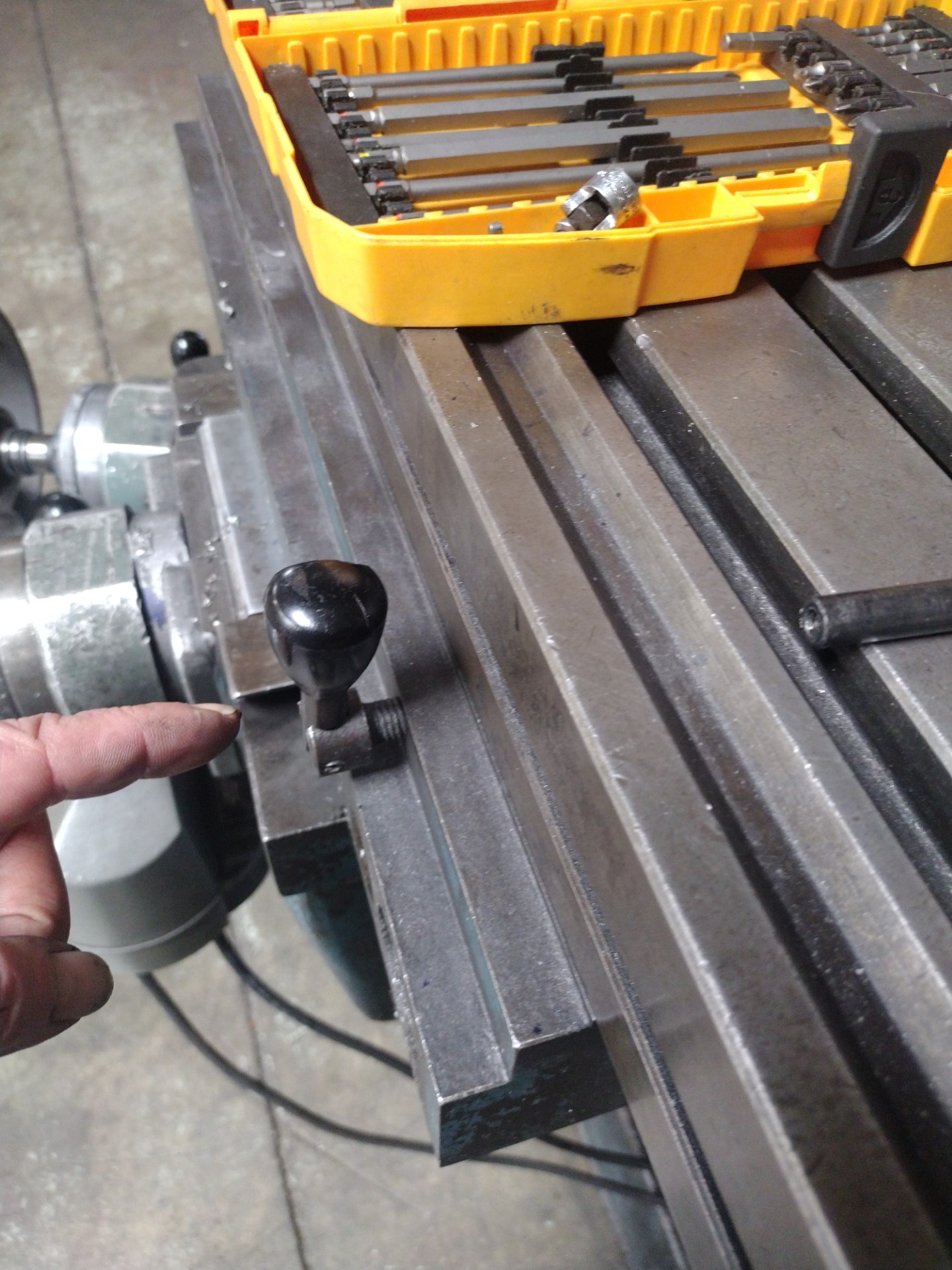

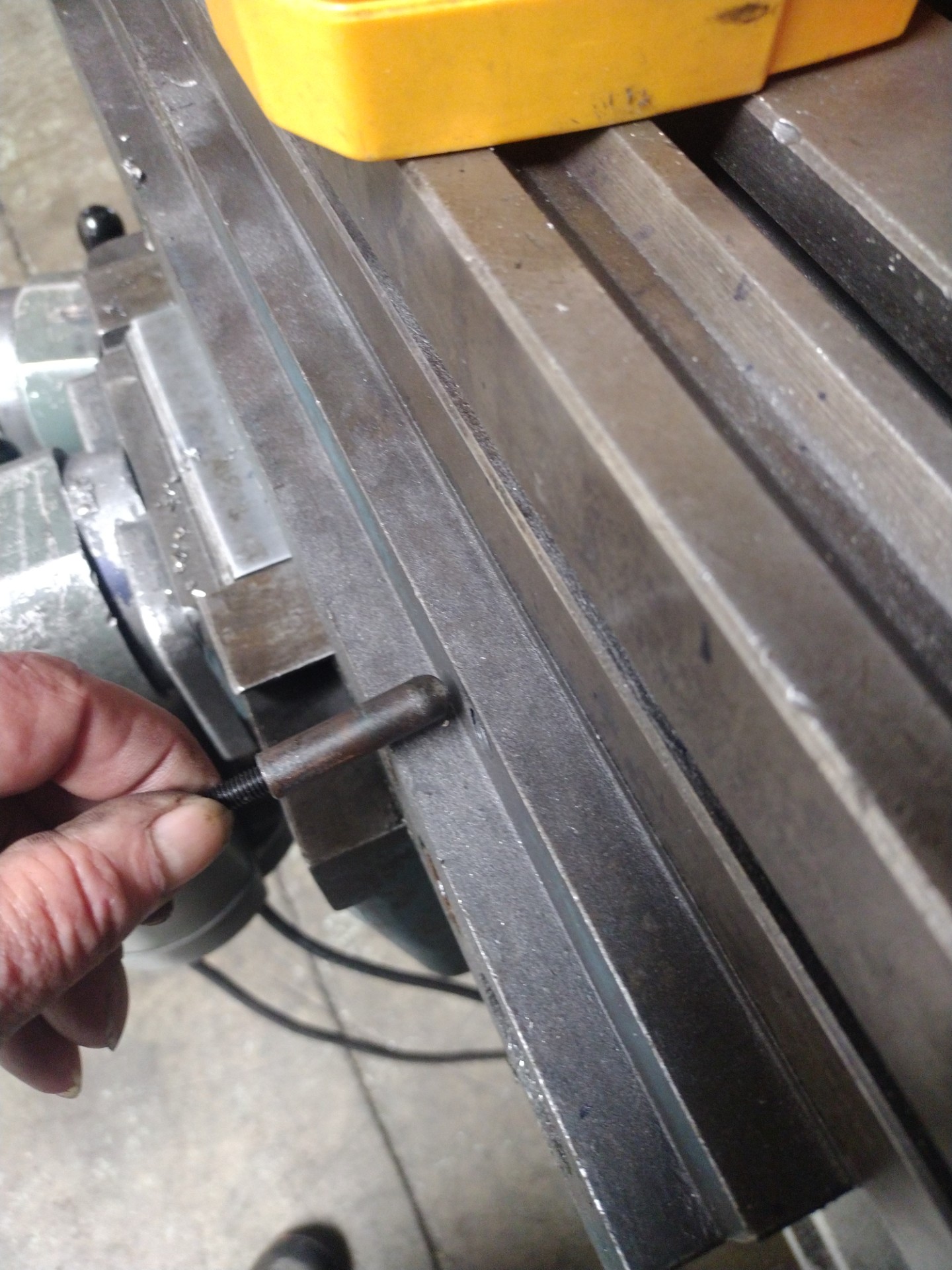

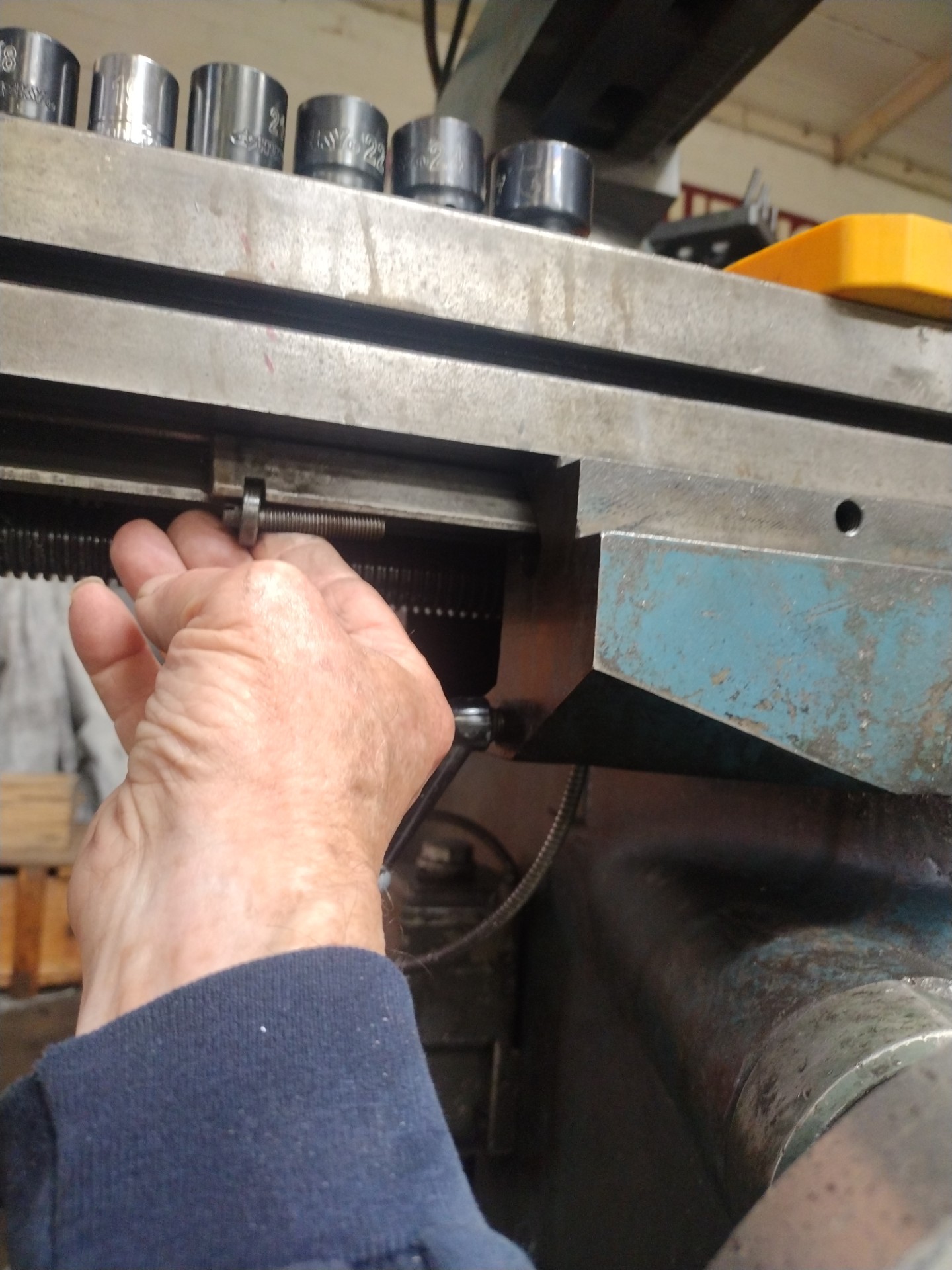

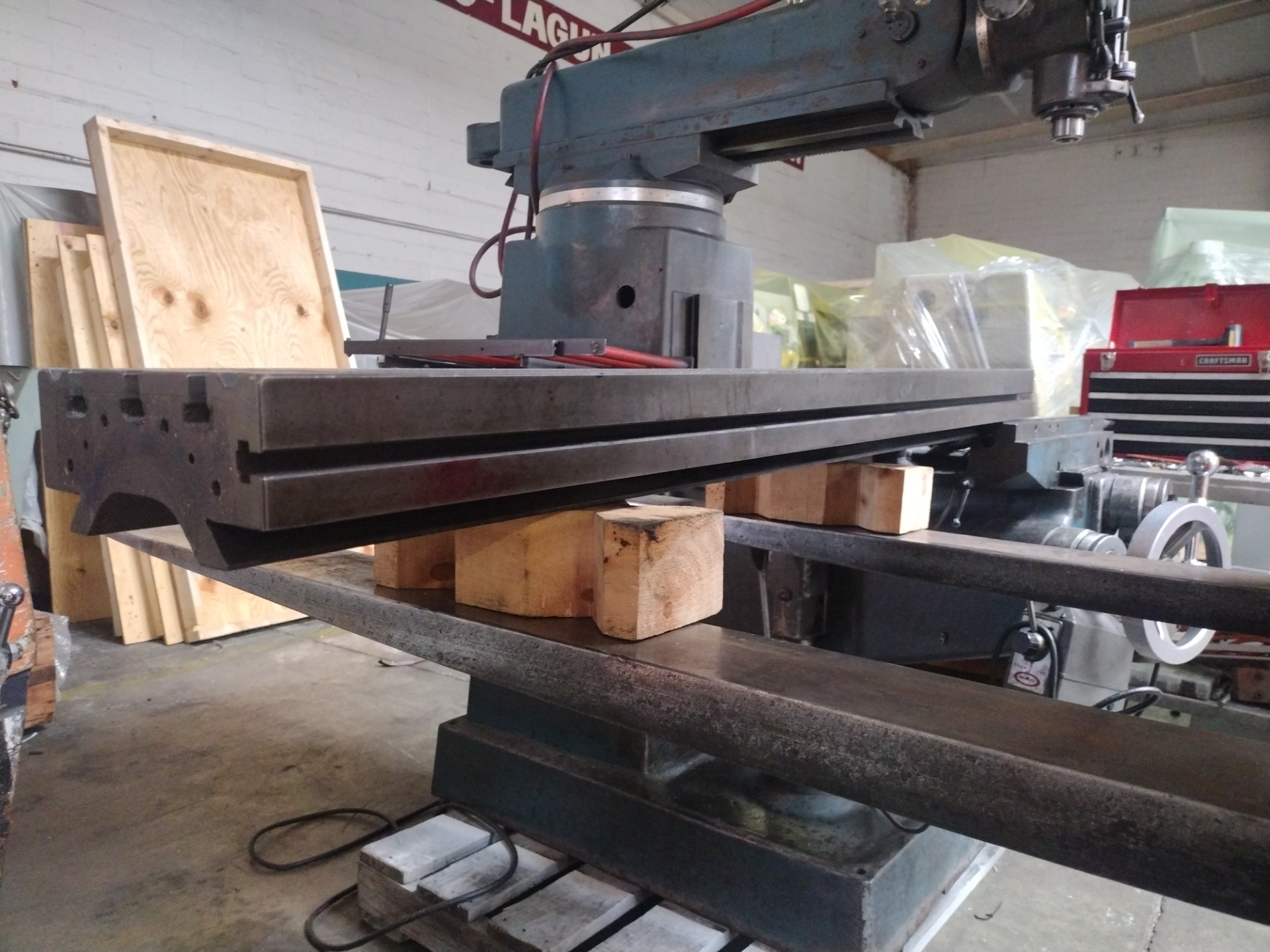

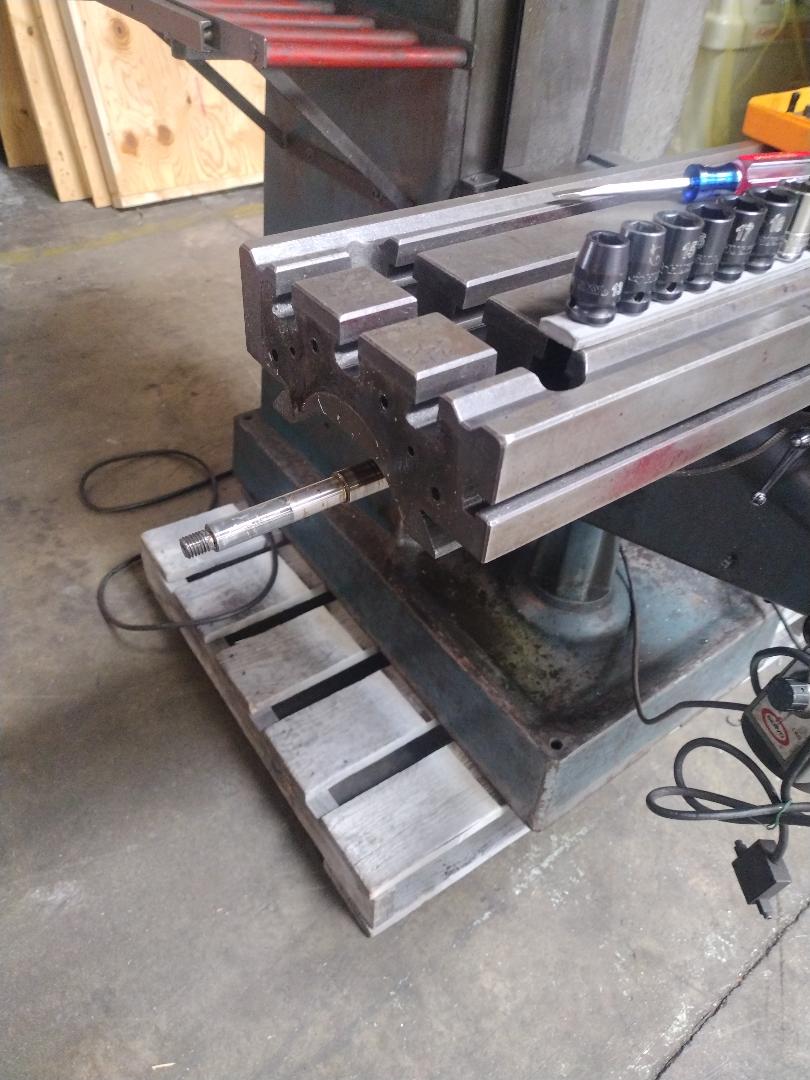

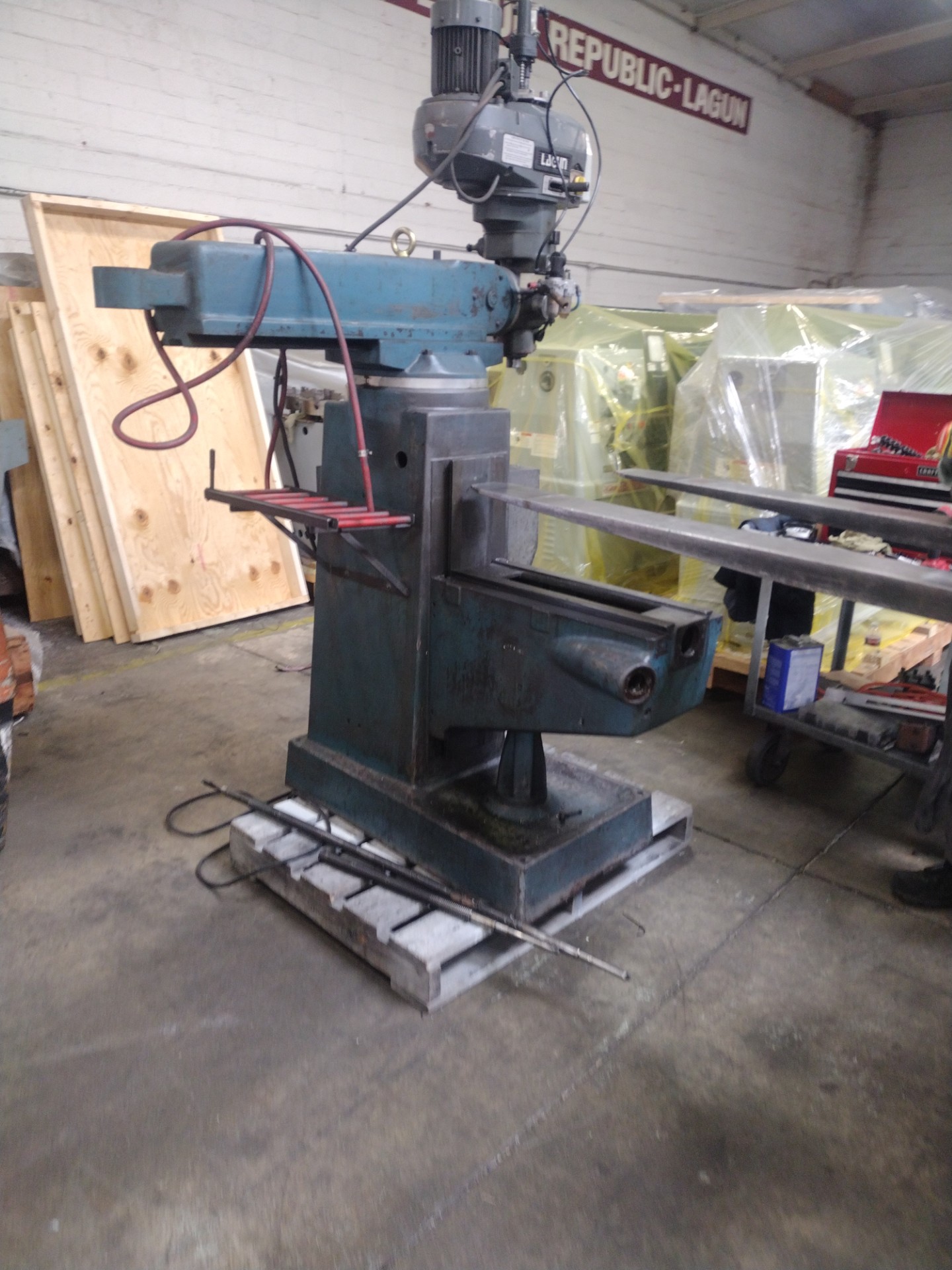

PLACE ON PALET FOR SHIPPING TO GRINDING CO. #19
-

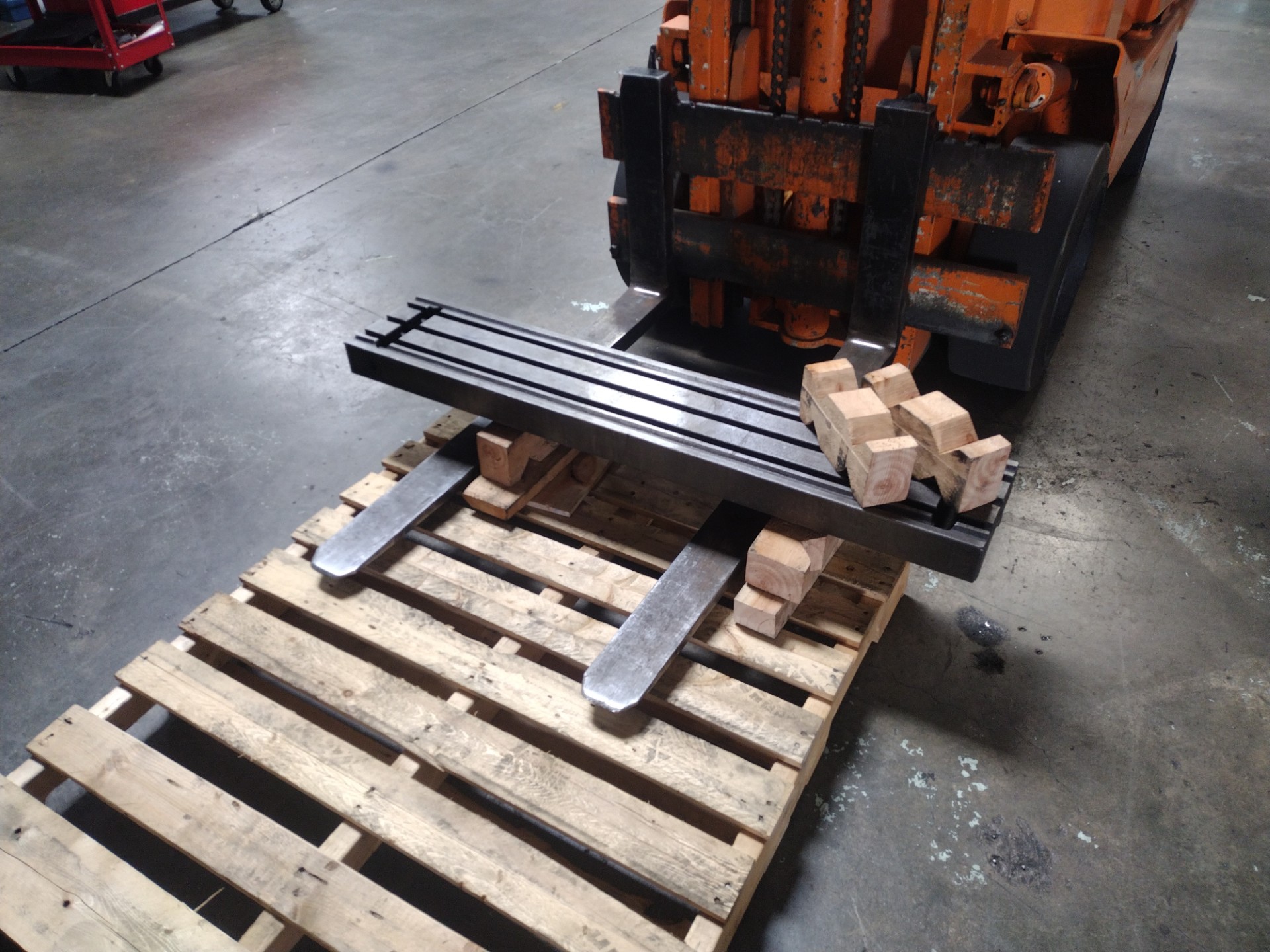

TO ALLOW FORKS WITHDRAWAL #20
-
LEADSCREW RETAINING SCREWS IN PLACE #21
-
RETAINING SCREWS REMOVED #22
-
REMOVE X SCREW AND LEADSCREW NUT #23
-
LEADSCREW REMOVED #24
-
SADDLE LOCK / TIGHTEN SADDLE #25
-

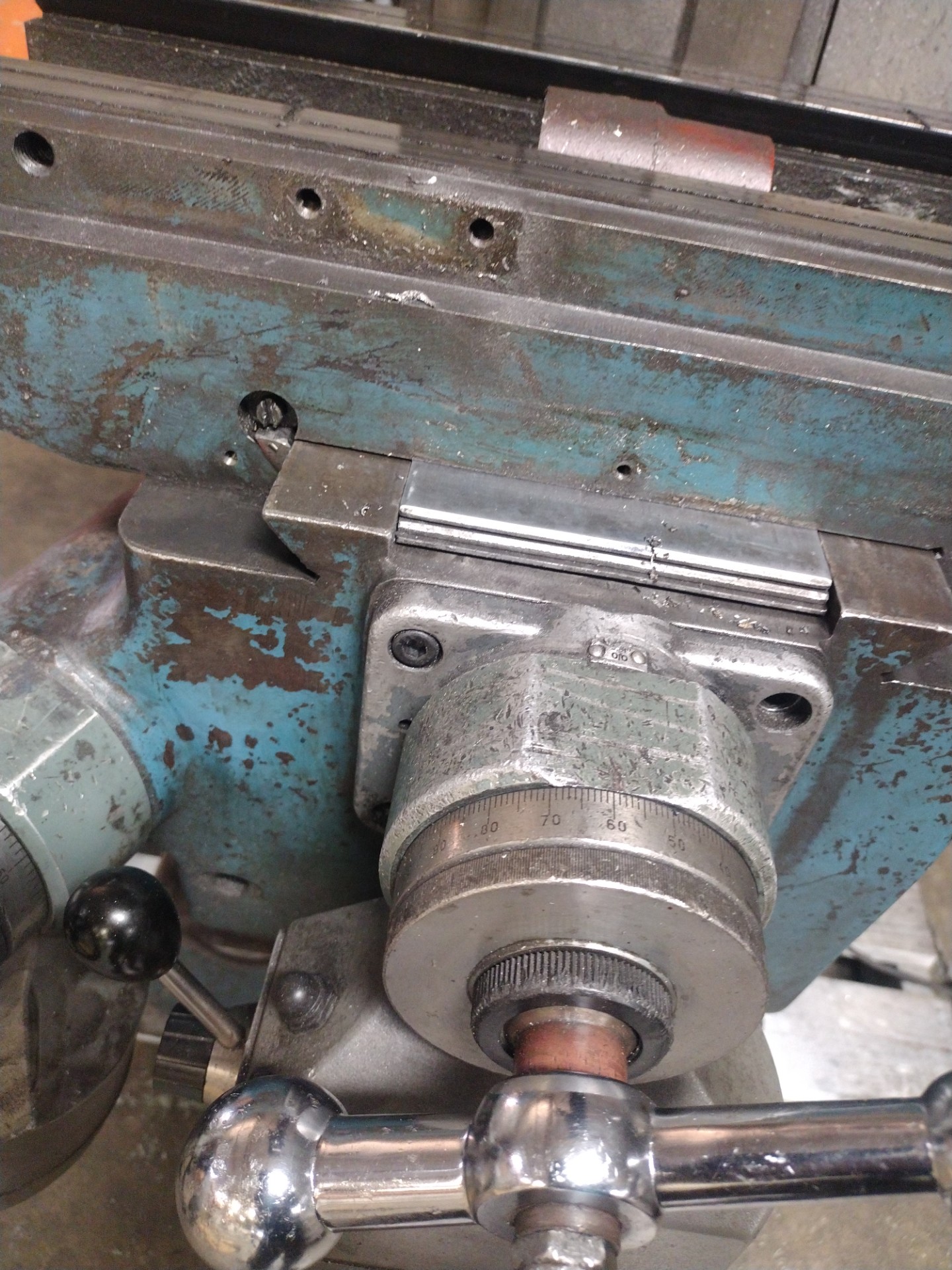

REMOVE SCREWS Y FRONT LEADSCREW BRACKET #26
-
ROTATE Y SCREW TO PUSH Y BRACKET AWAY FRONT KNEE #27
-

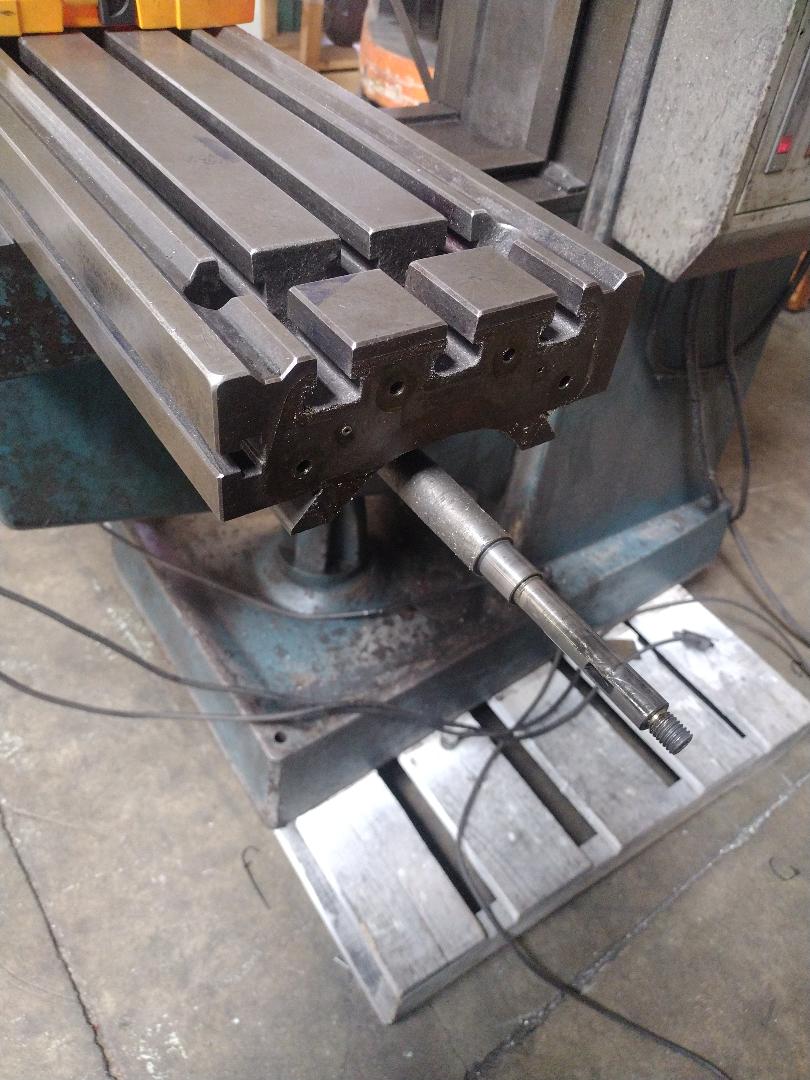

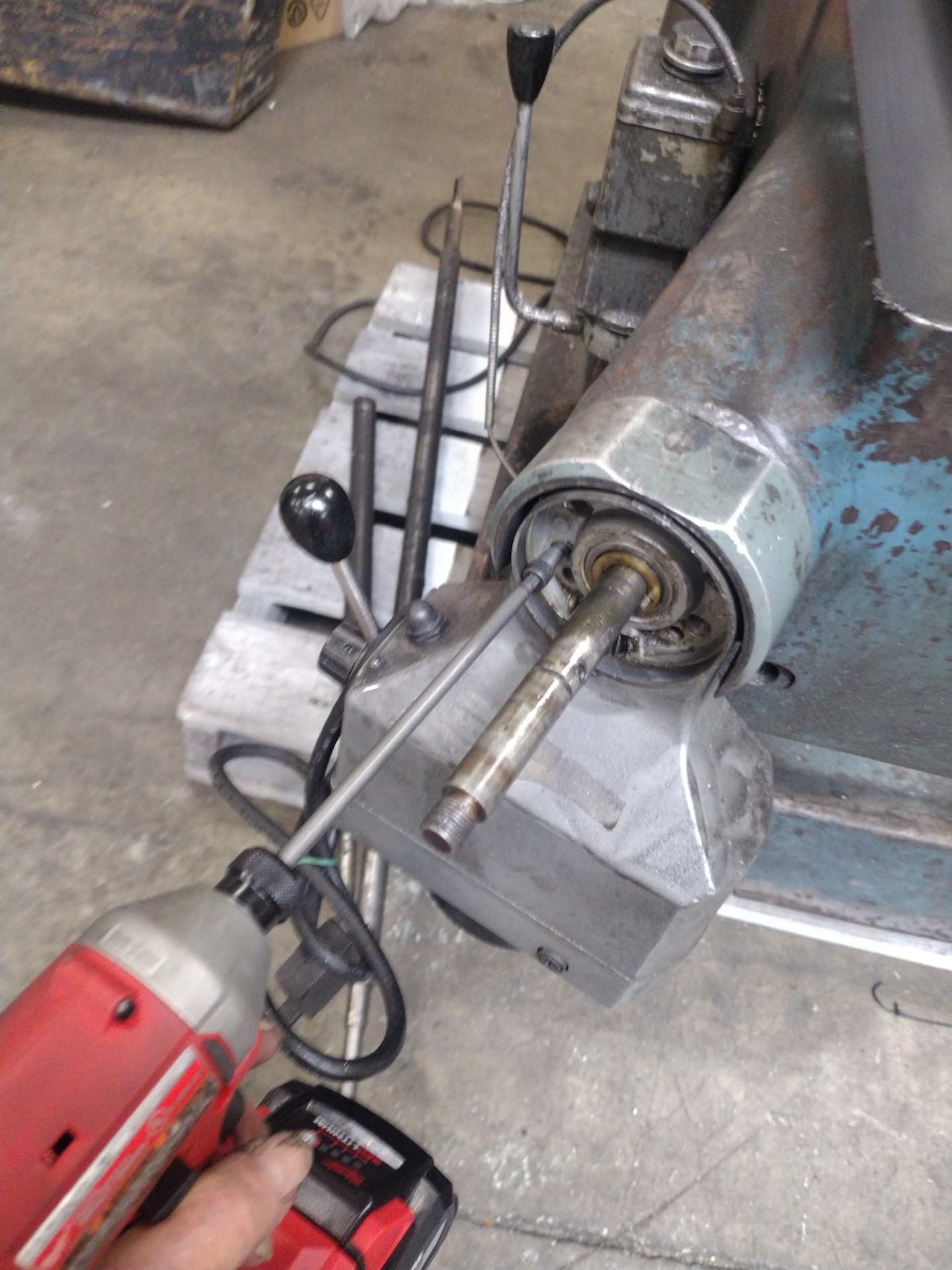

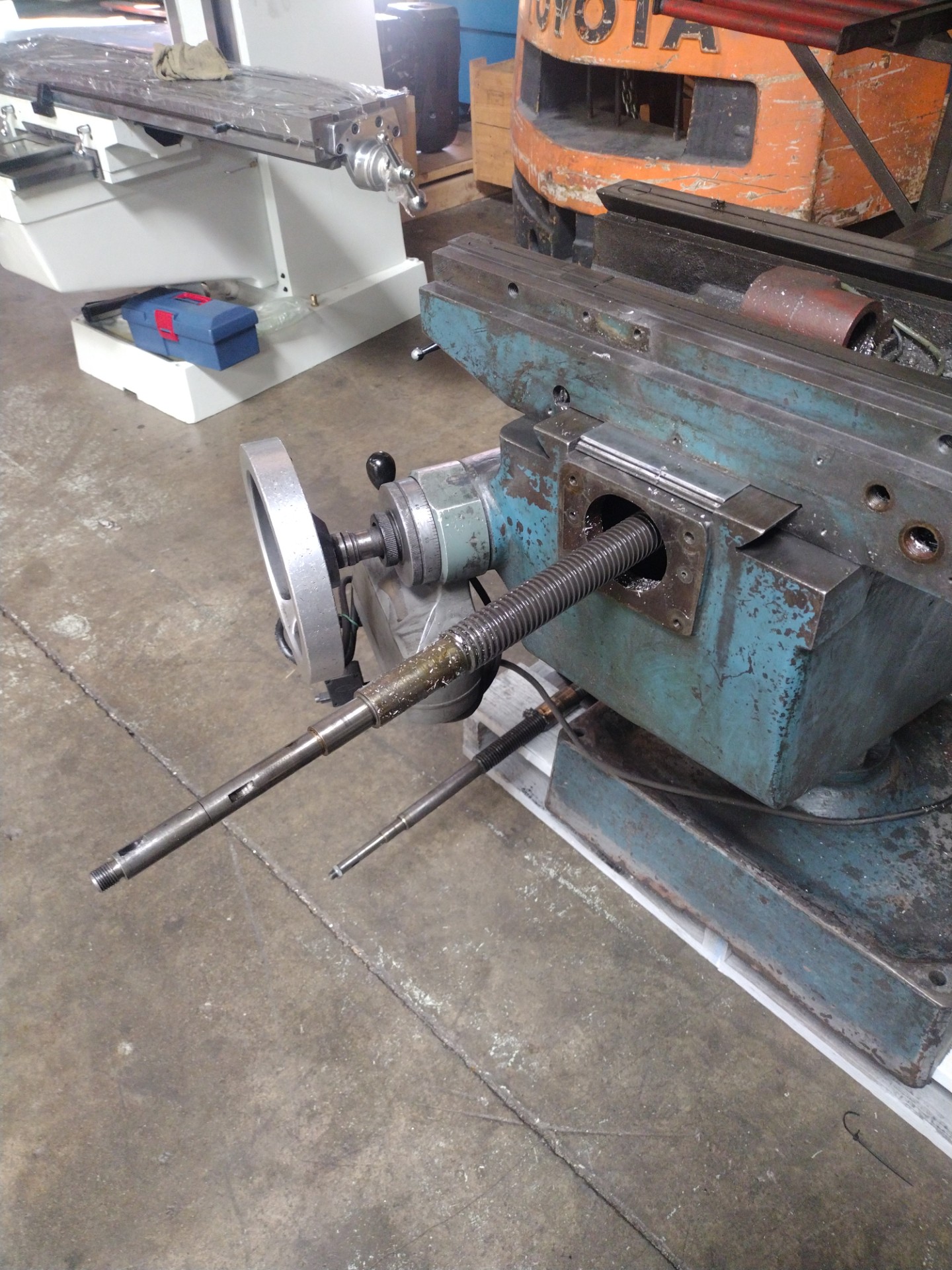

REMOVE POWER FEED FROM ASSEMBLY #28
-

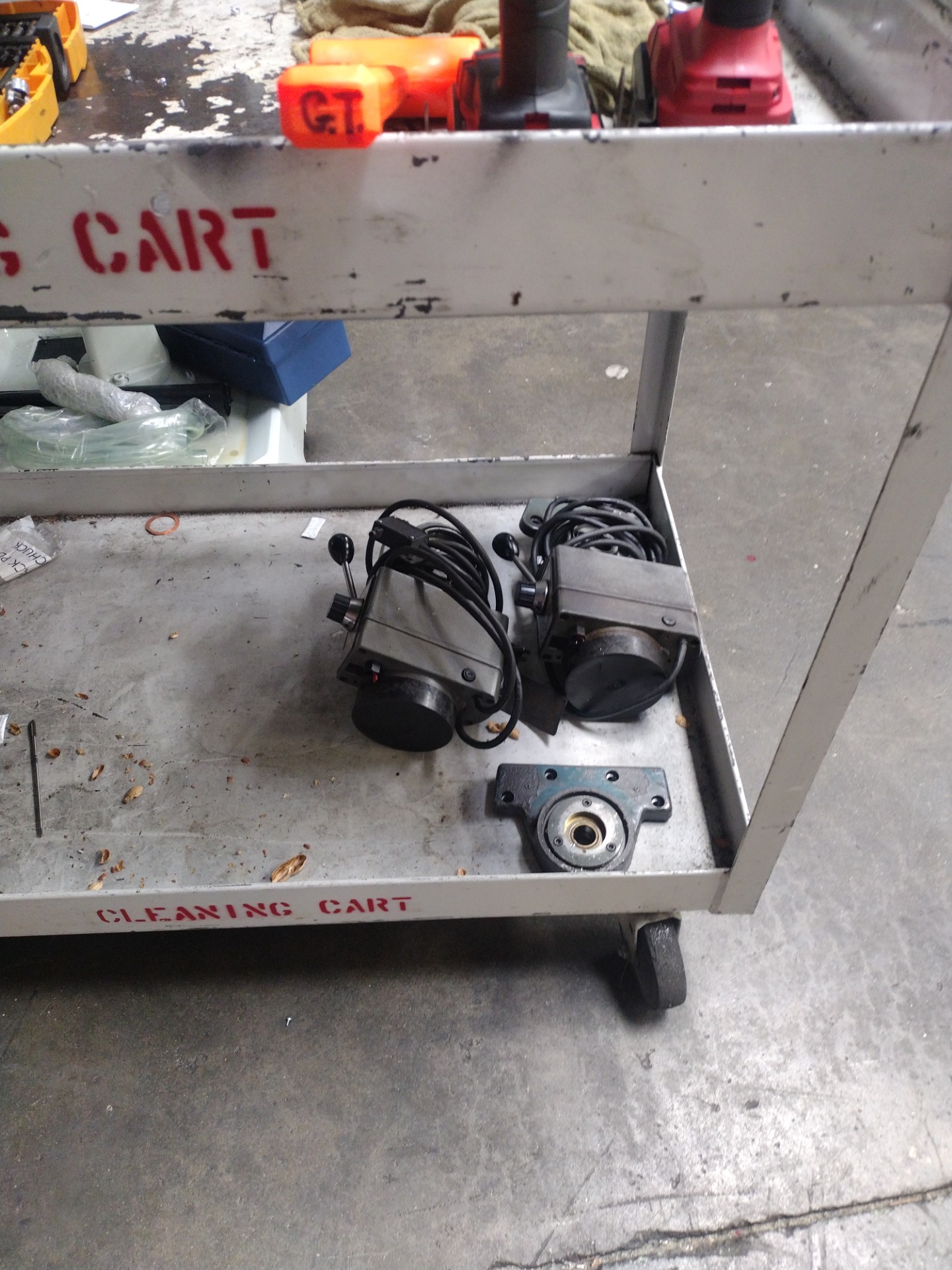

STORED POWER FEEDS #29
-
30 TABLE, X,Y LEADSCREWS REMOVED #30
-

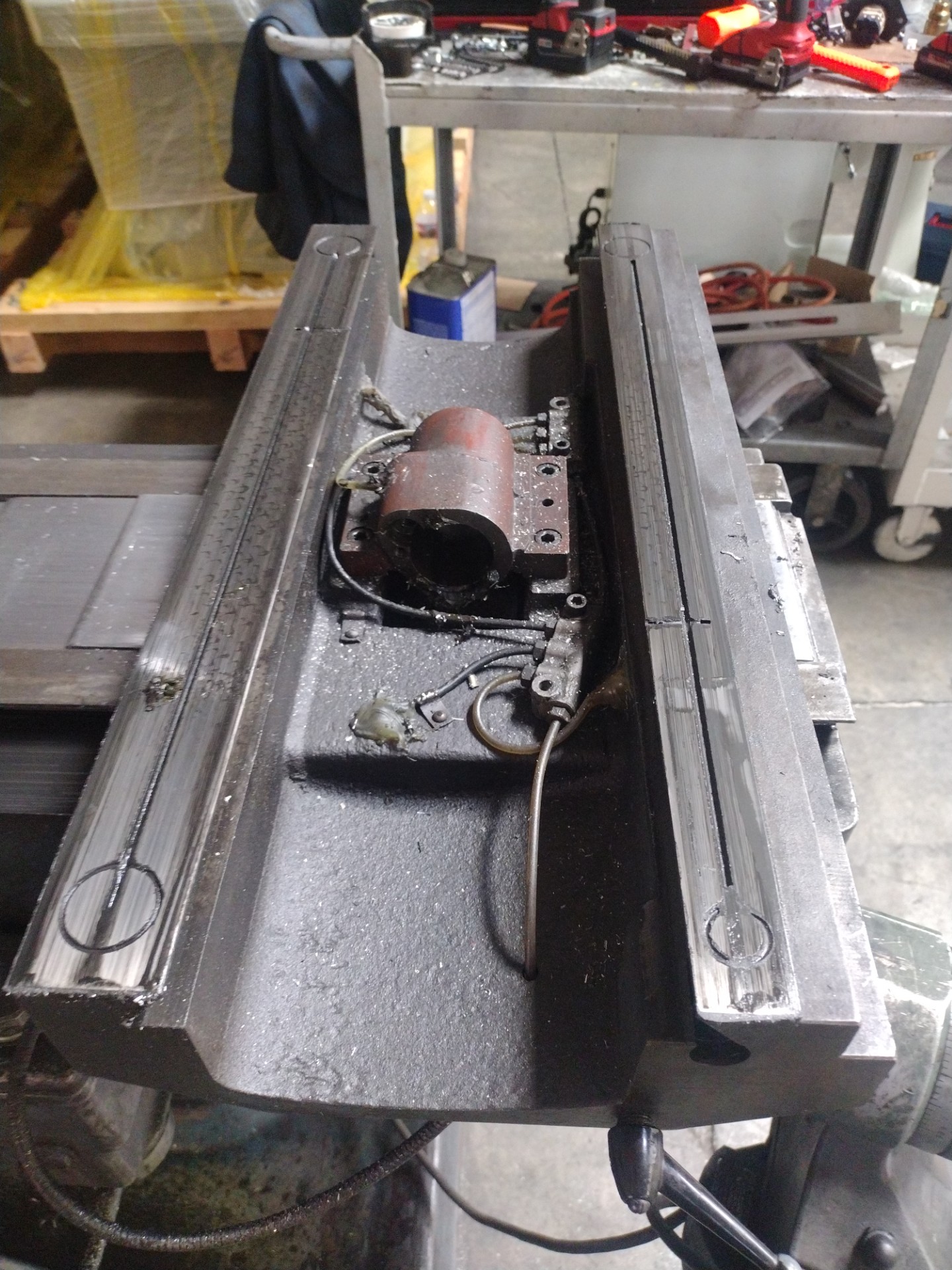

YOKE, REMOVE SCREWS ON WINGS #31
-

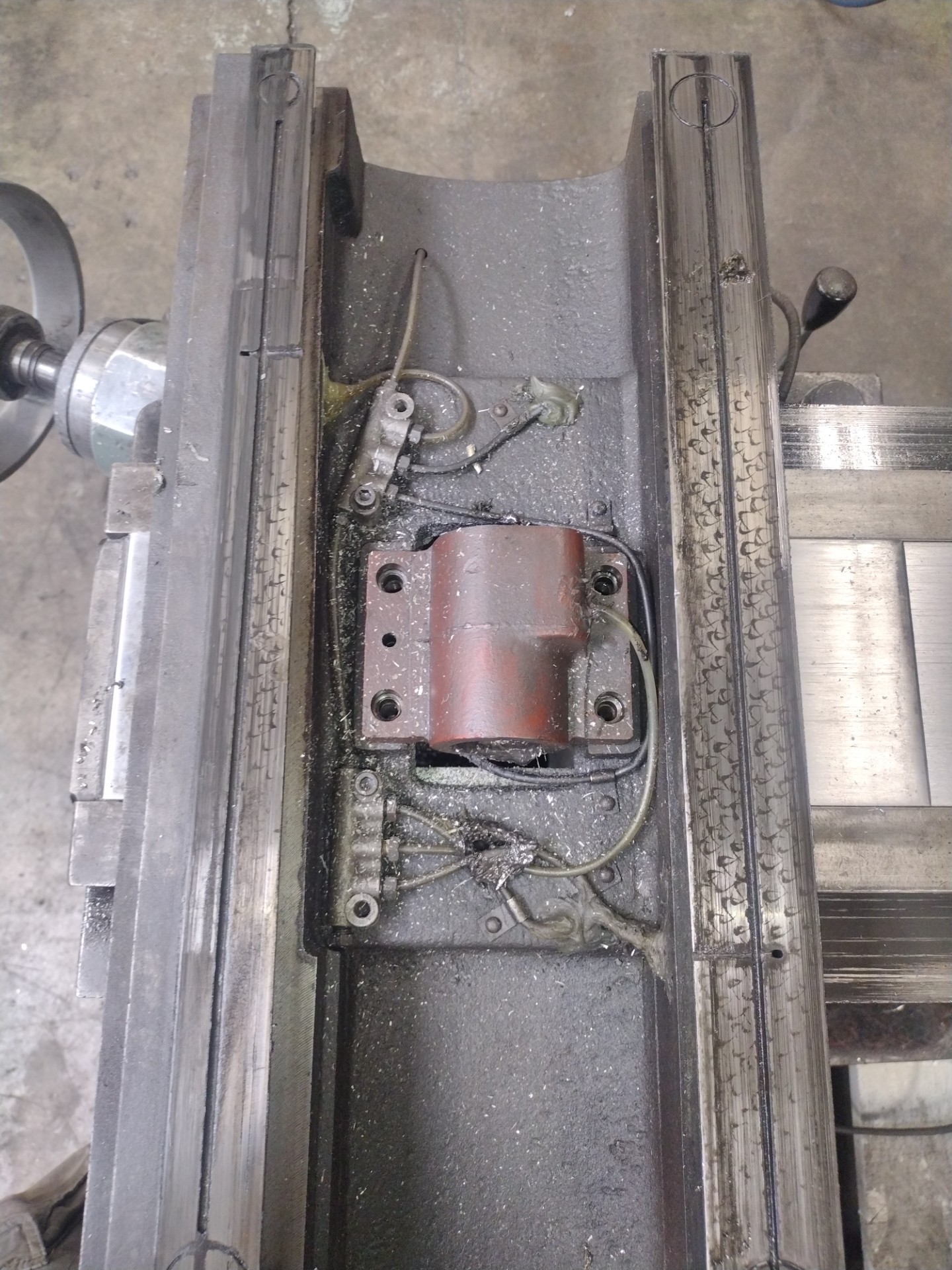

SCREWS REMOVED #32
-

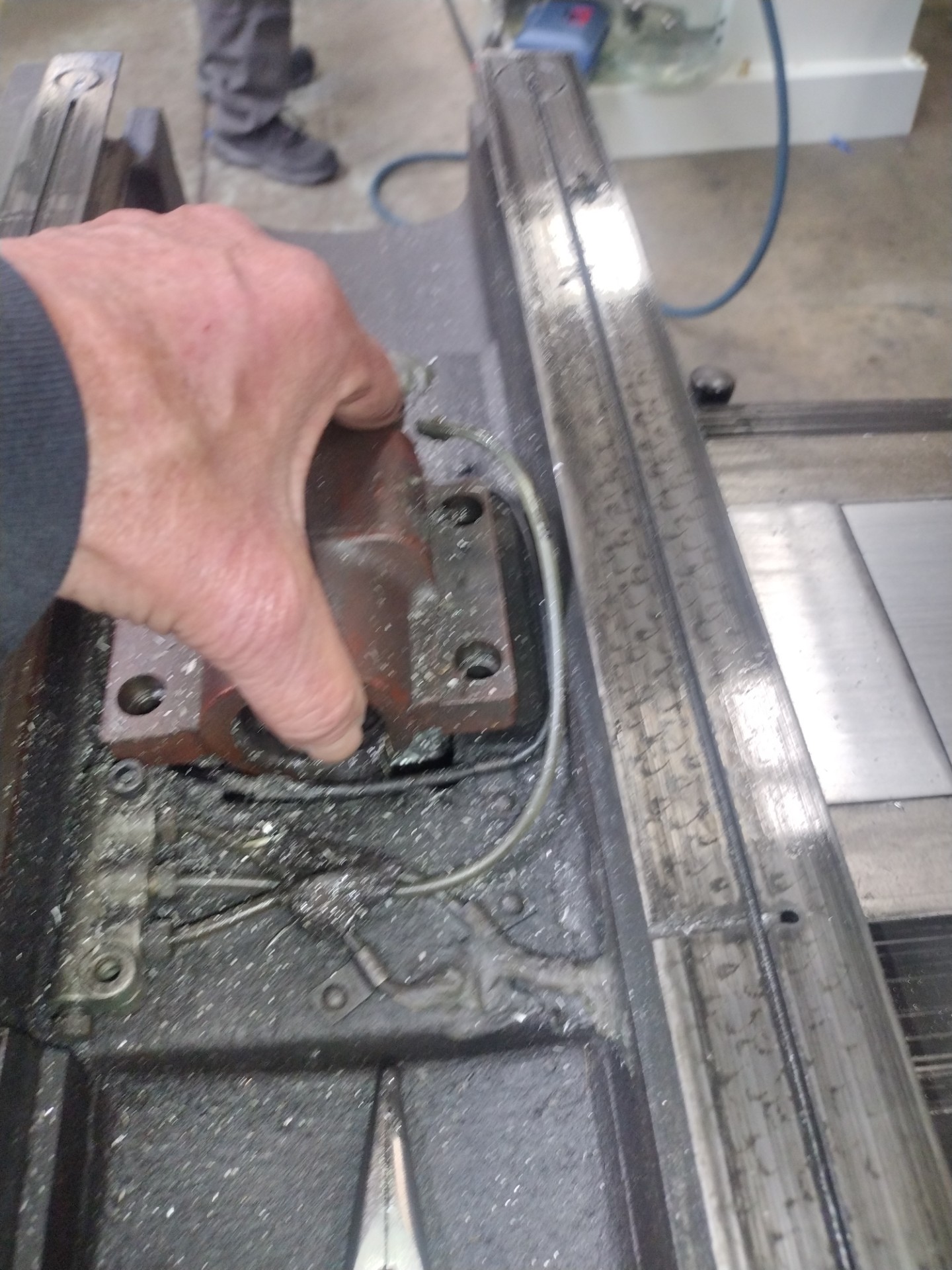

PULL UPWARDS TO REMOVE YOKE #33
-
TURN YOKE 90 DEGREES TO CLEAR SADDLE PORT #34
-
YOKE REMOVED #35
-

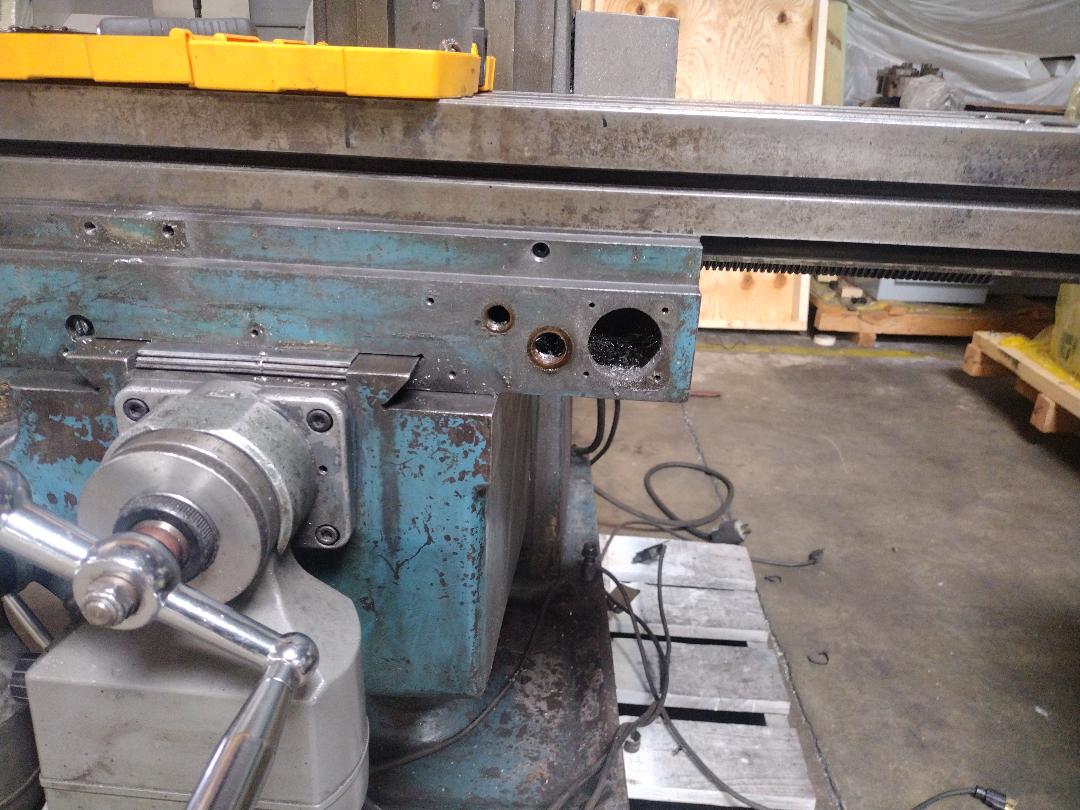

REMOVE SADDLE LOCKS, INSERT 6MM SCREW TO ENGAGE SPIGOT #36
-

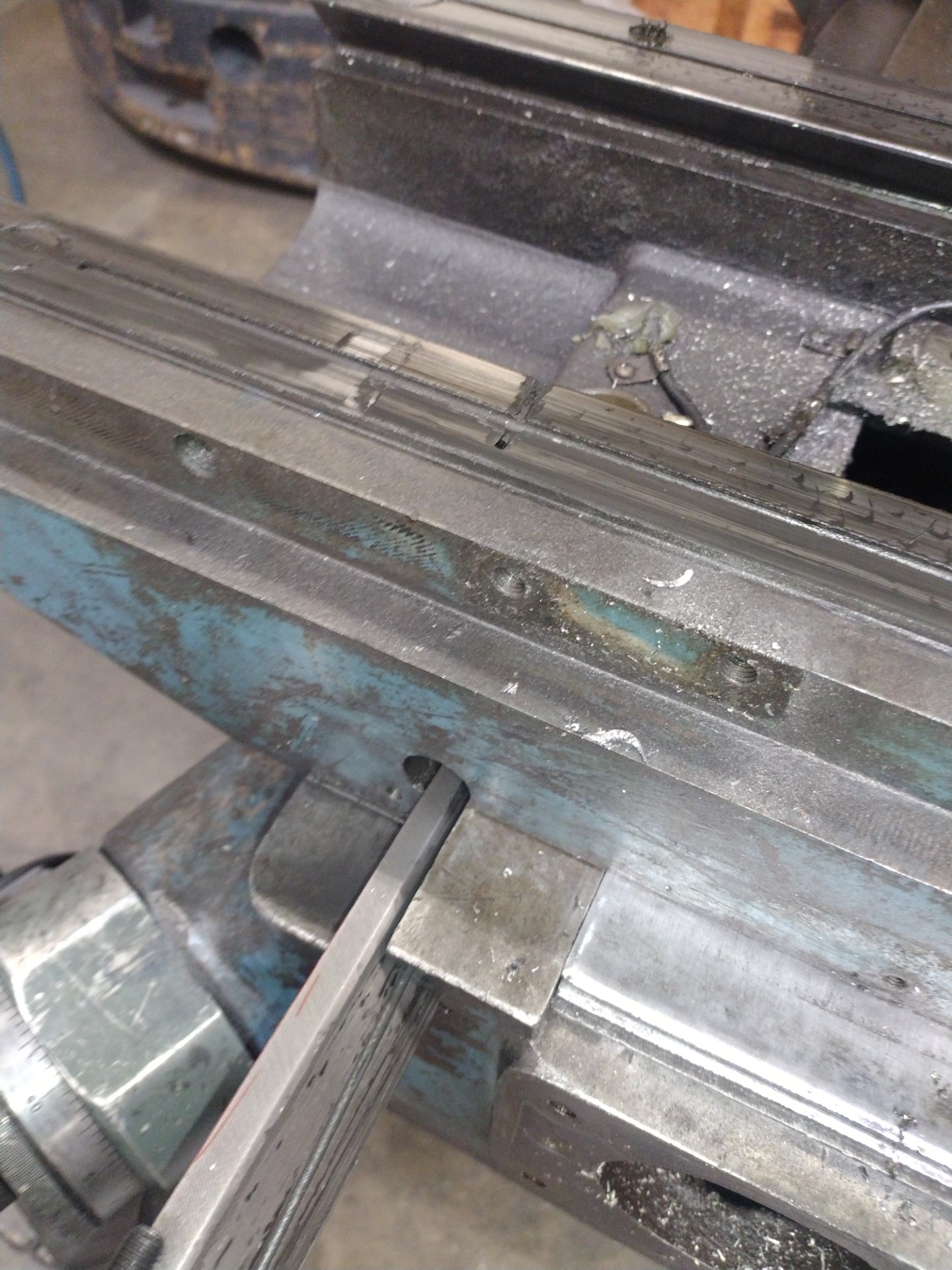

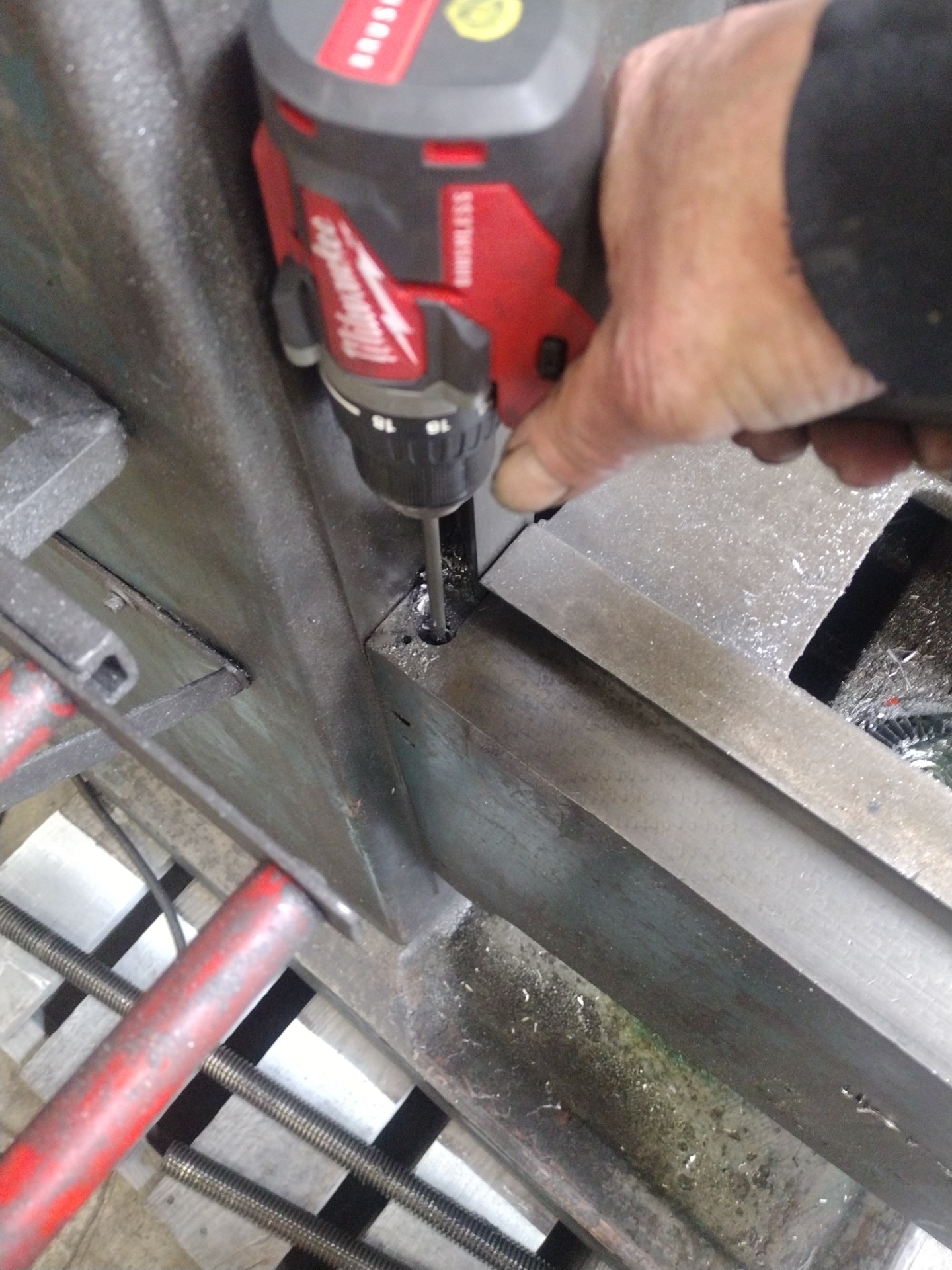

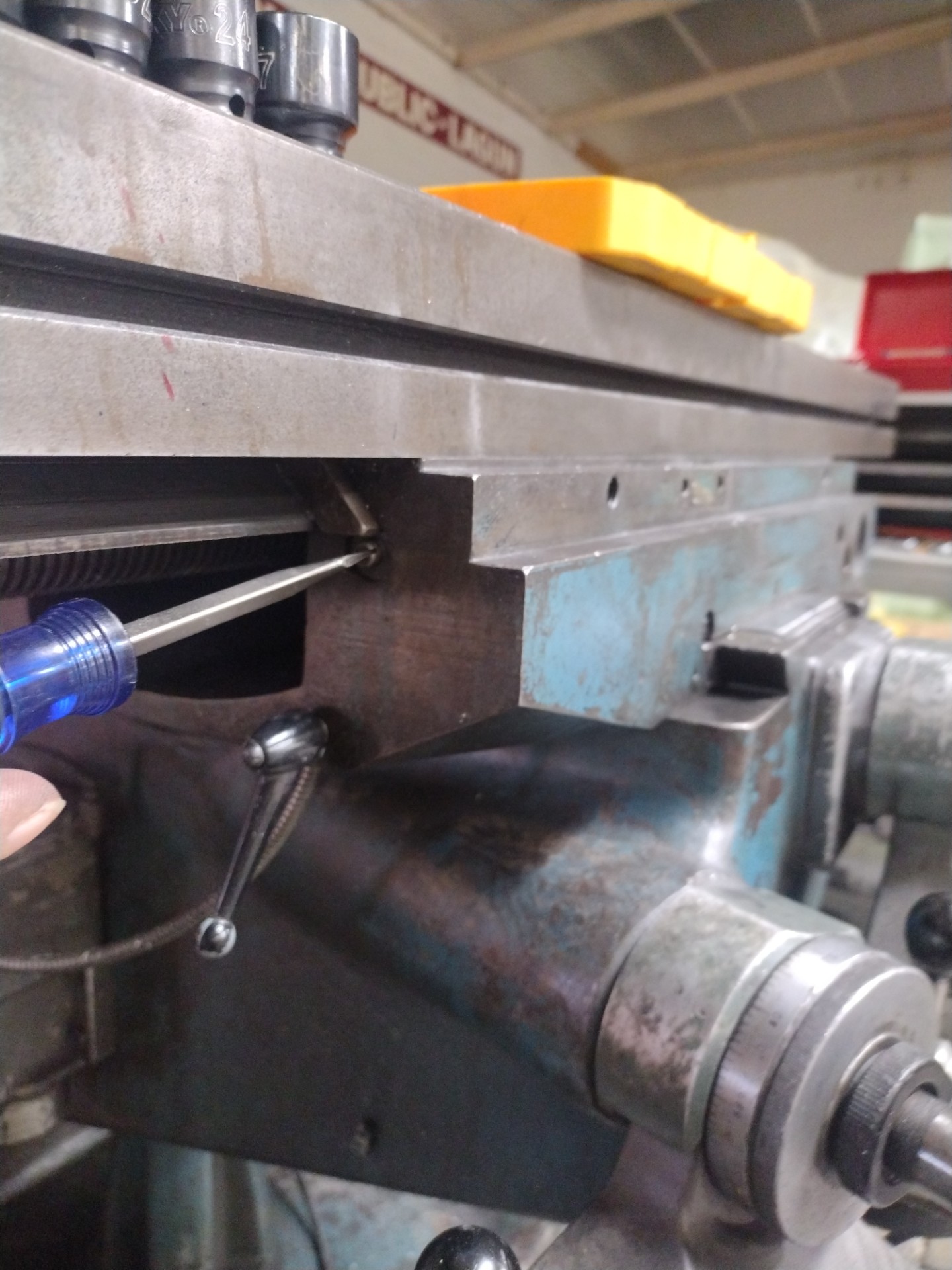

REMOVE Z AXIS GIB RETAINING SCREW #55
-

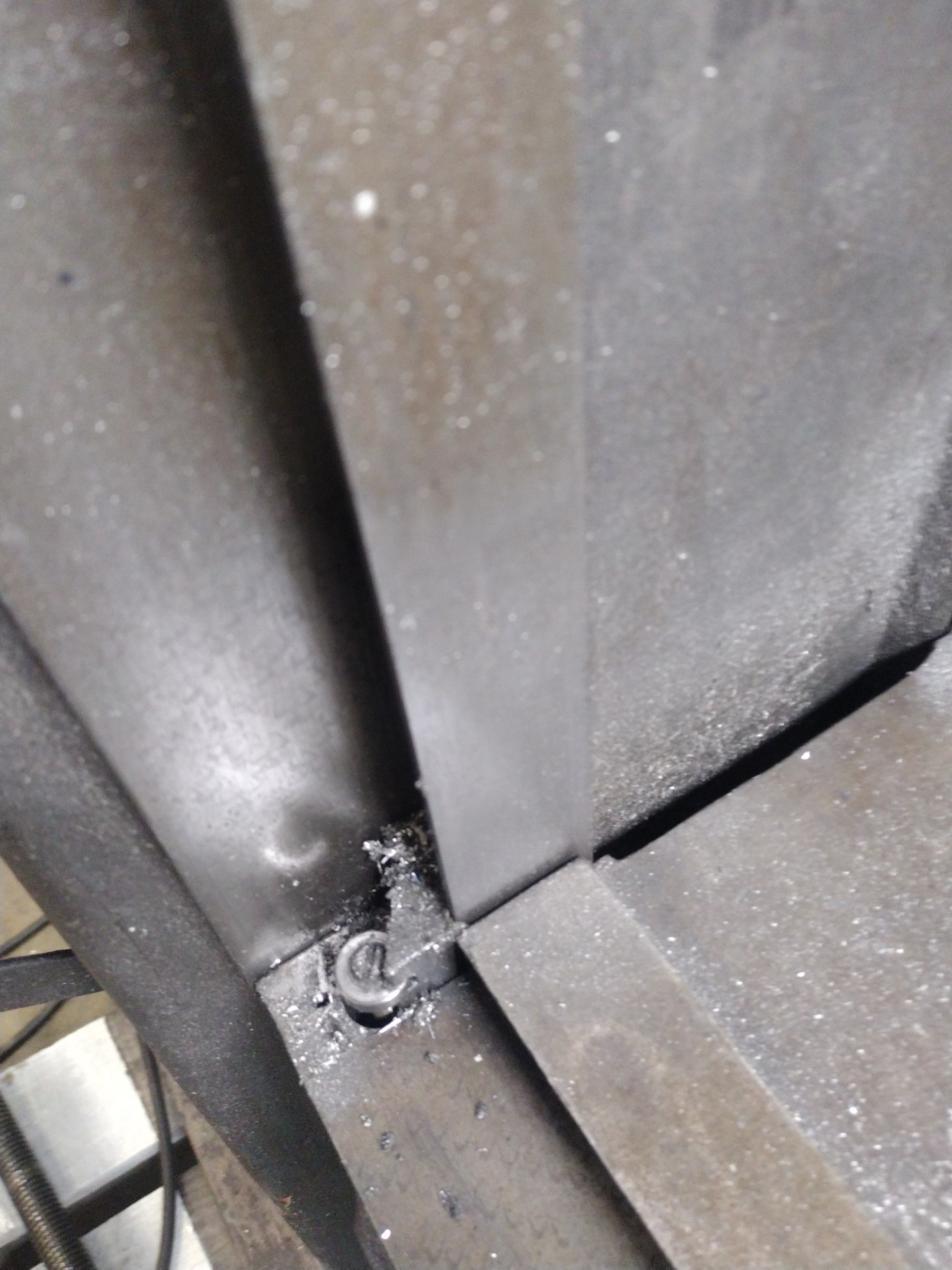

SCREW TO BE REMOVED WHEN FREE OF THREADED HOLE #56
-

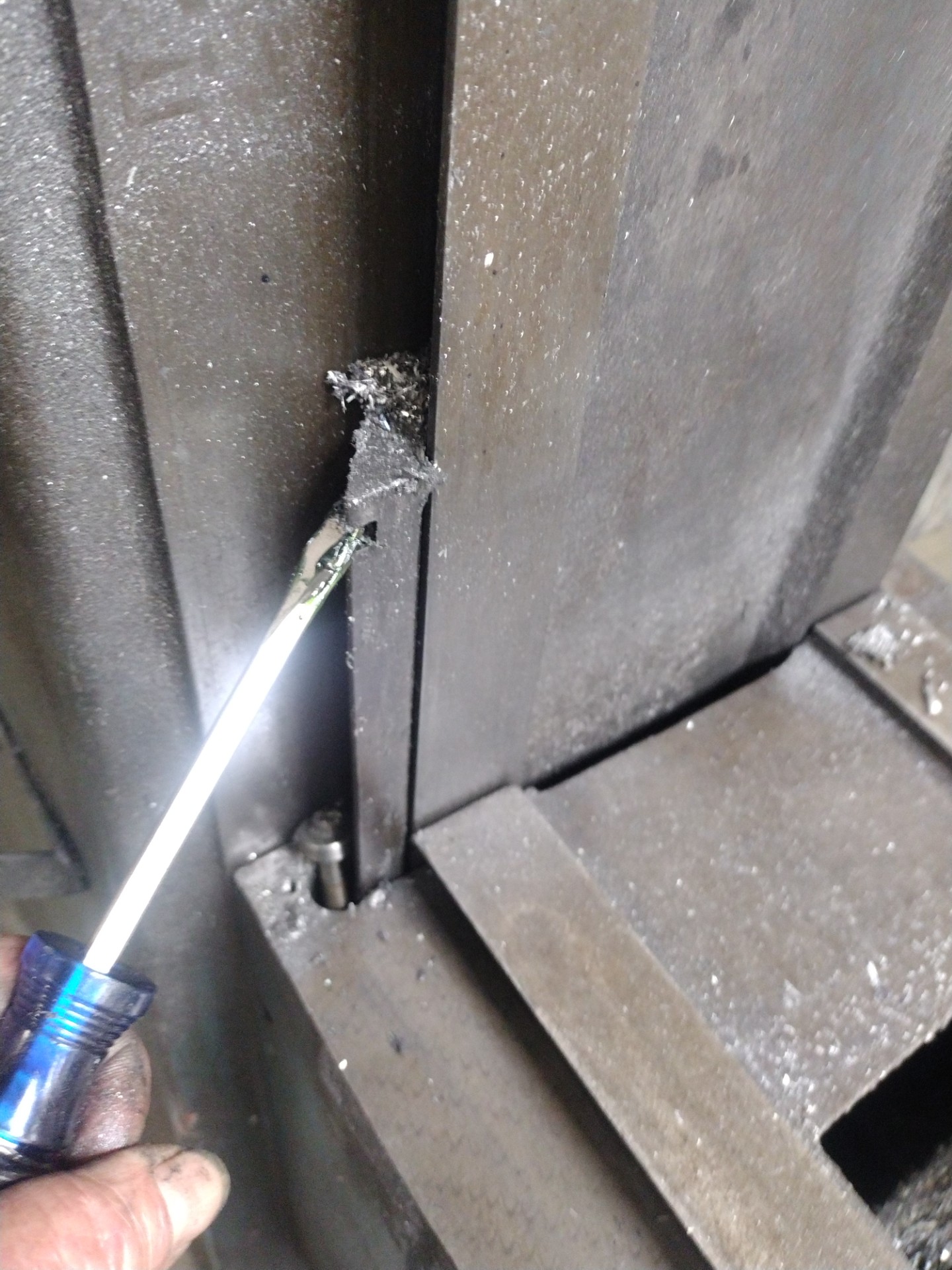

USE SCREWDRIVER TO MOVE SCREW AND GIB STRAIGHT UPWARDS #57
-
CONTINUE MOVING GIB STRAIGHT UPWARDS #58
-

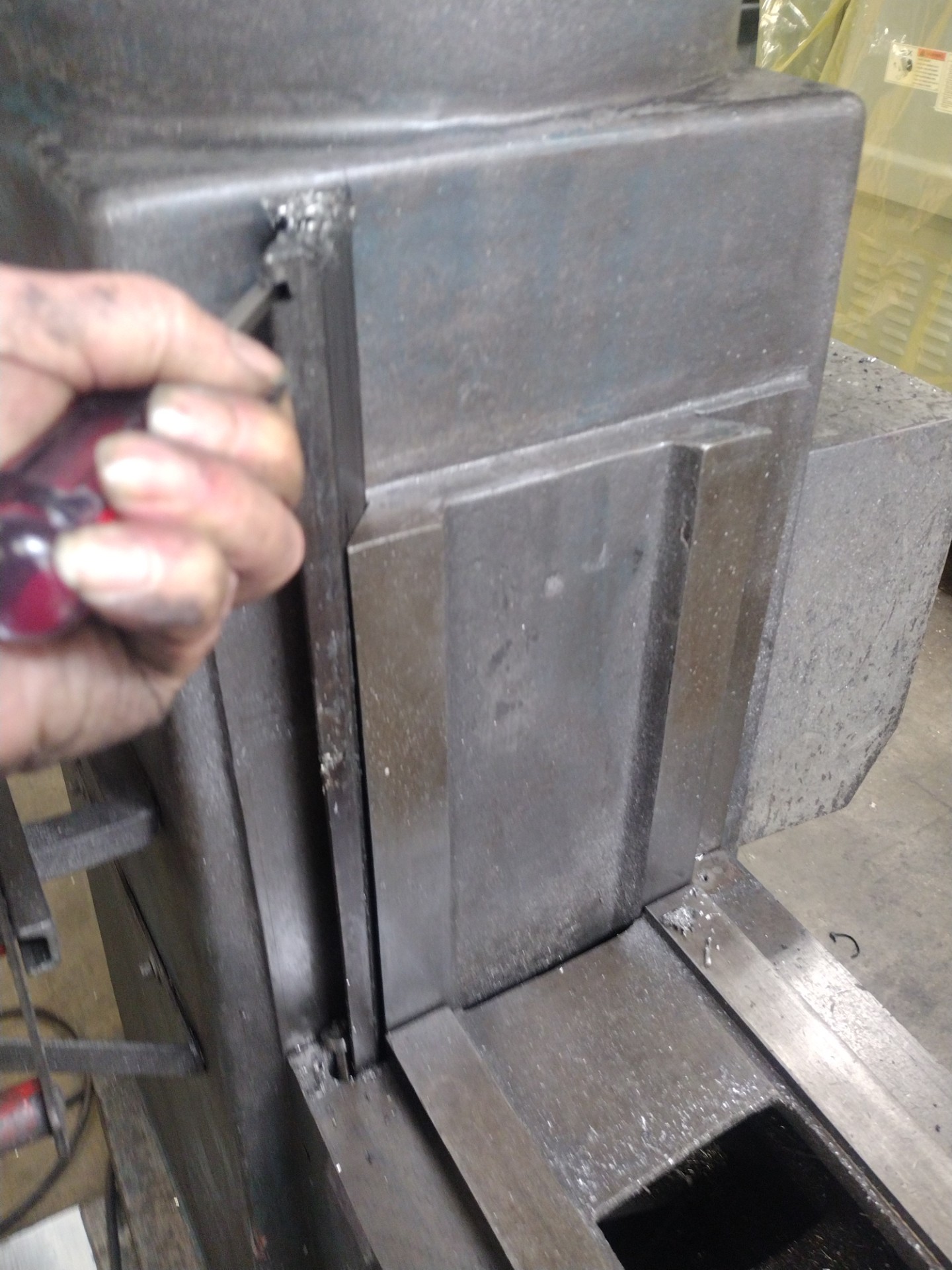

MAKE SURE GIB CLEARS #59
-

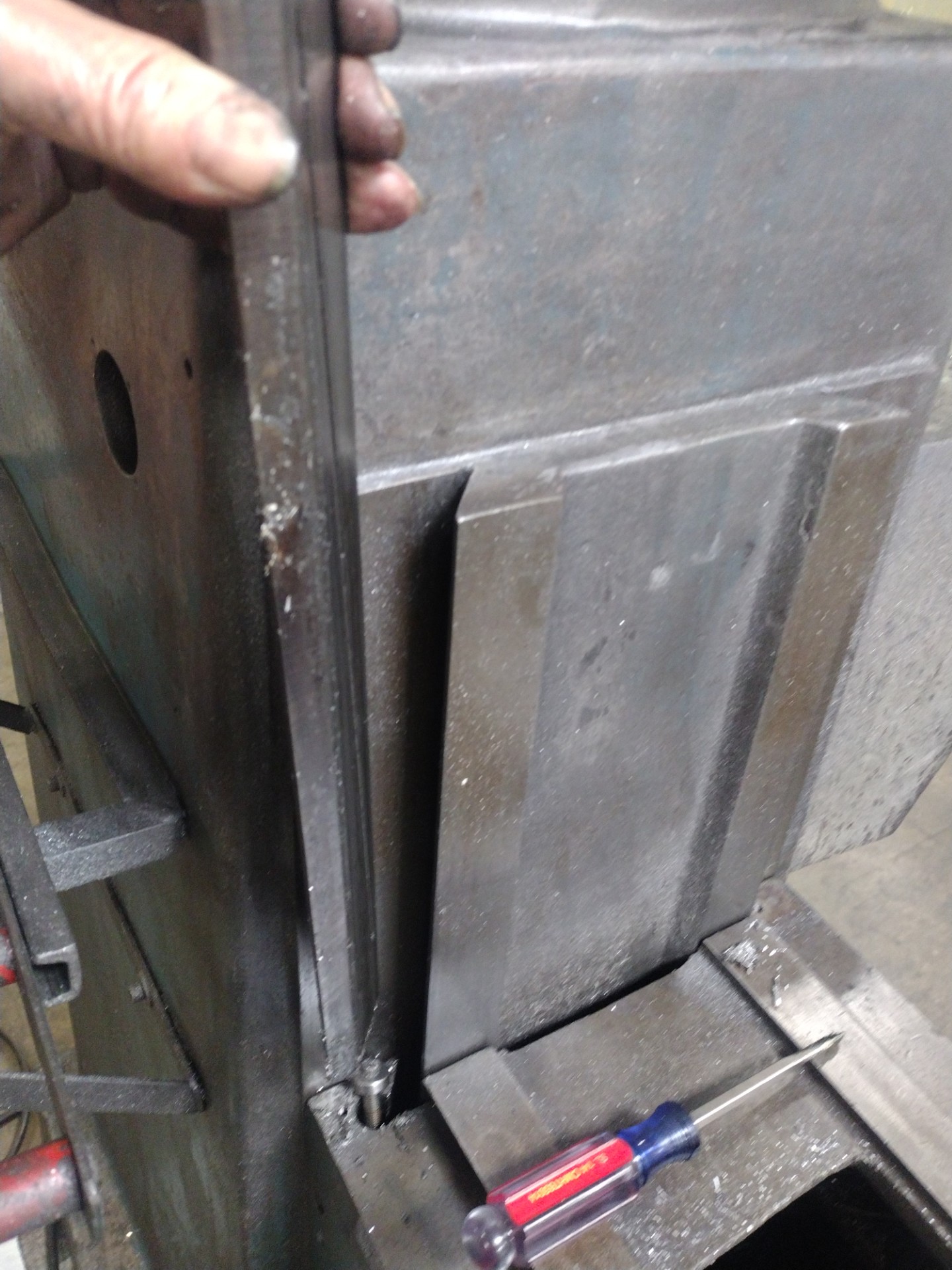

Z AXIS GIB CLEARED #60
-
Z AXIS GIB AND SCREW REMOVED #61
-

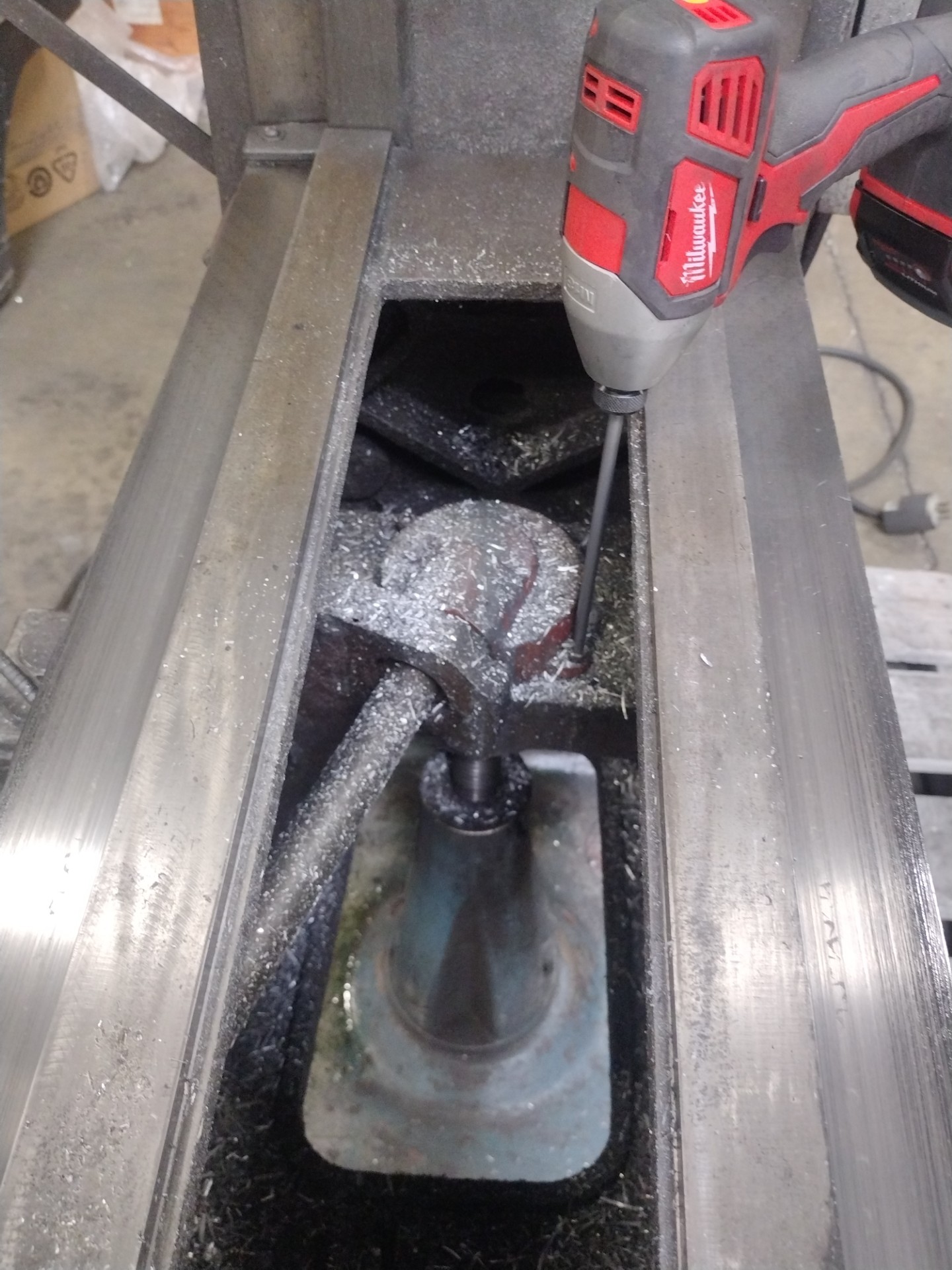

REMOVE BEARING RETAINER FROM KNEE #62
-

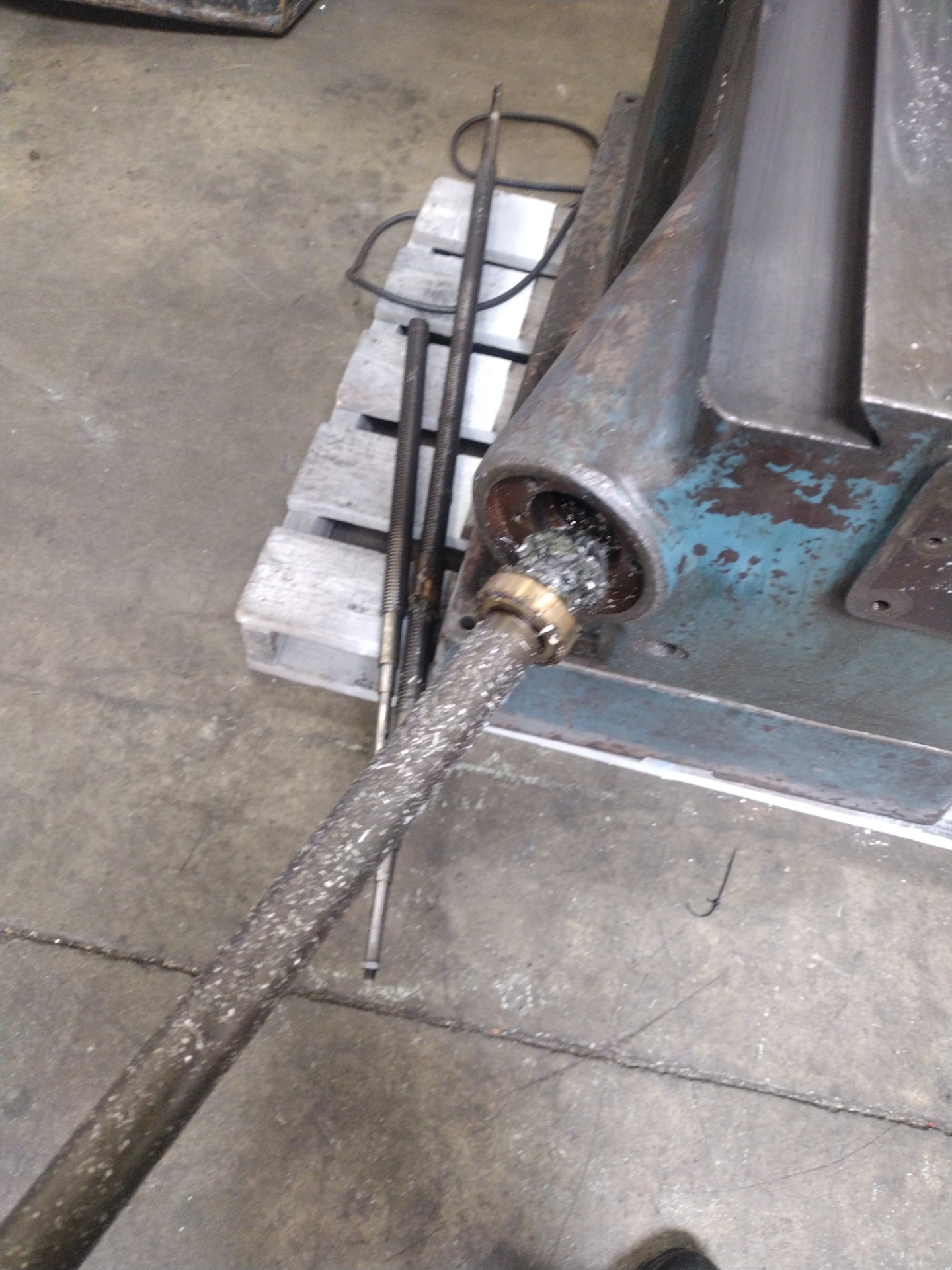

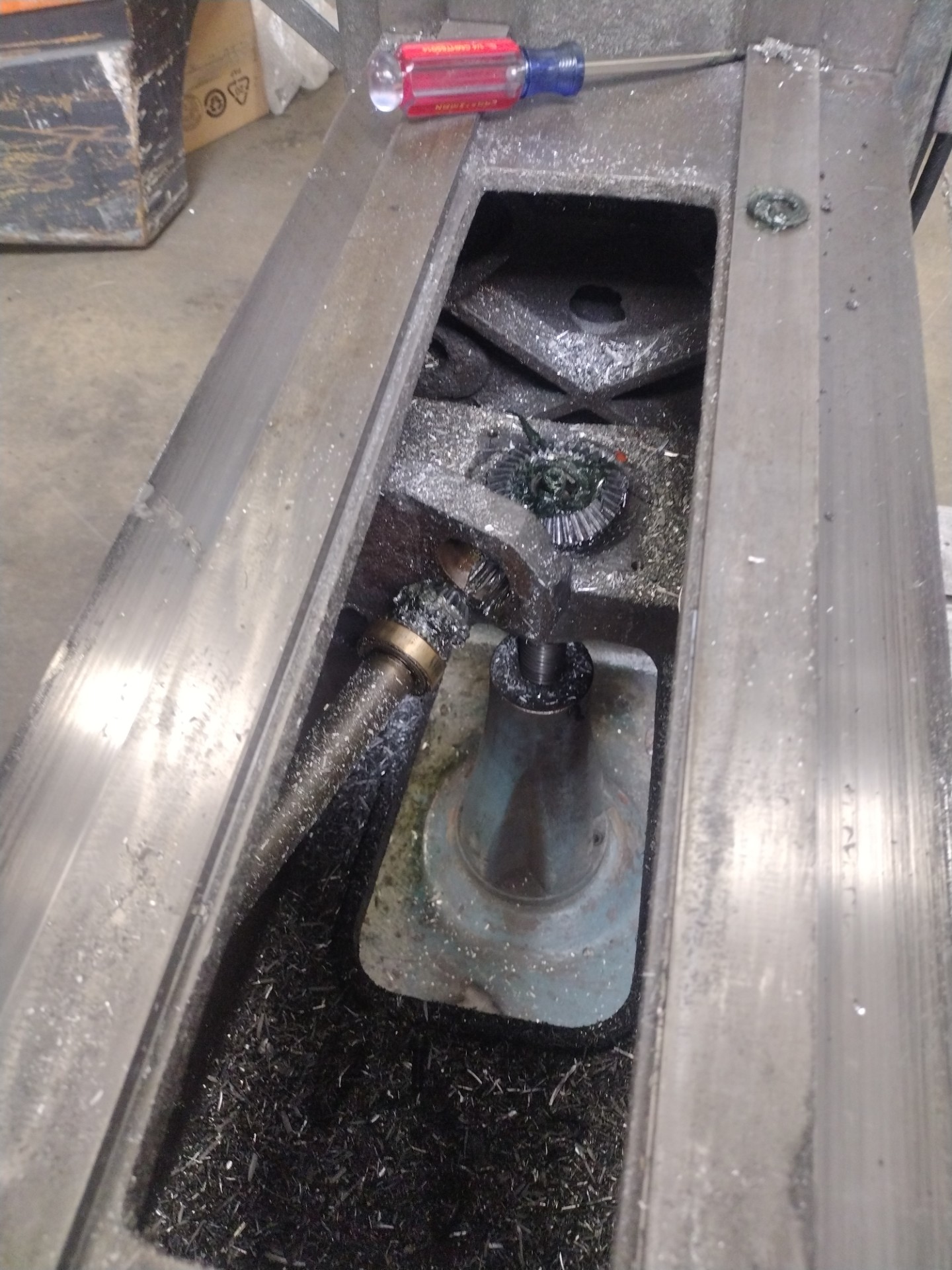

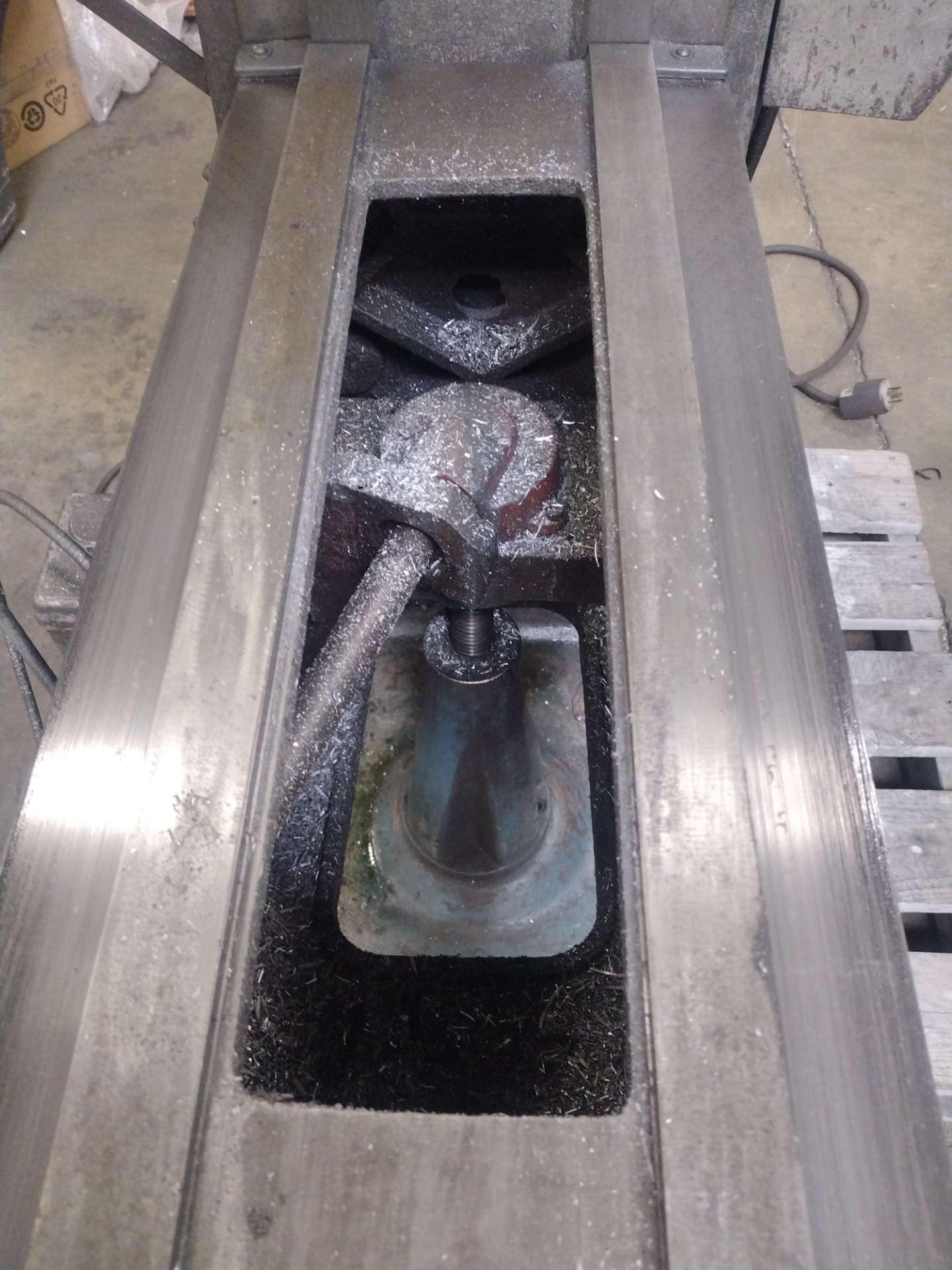

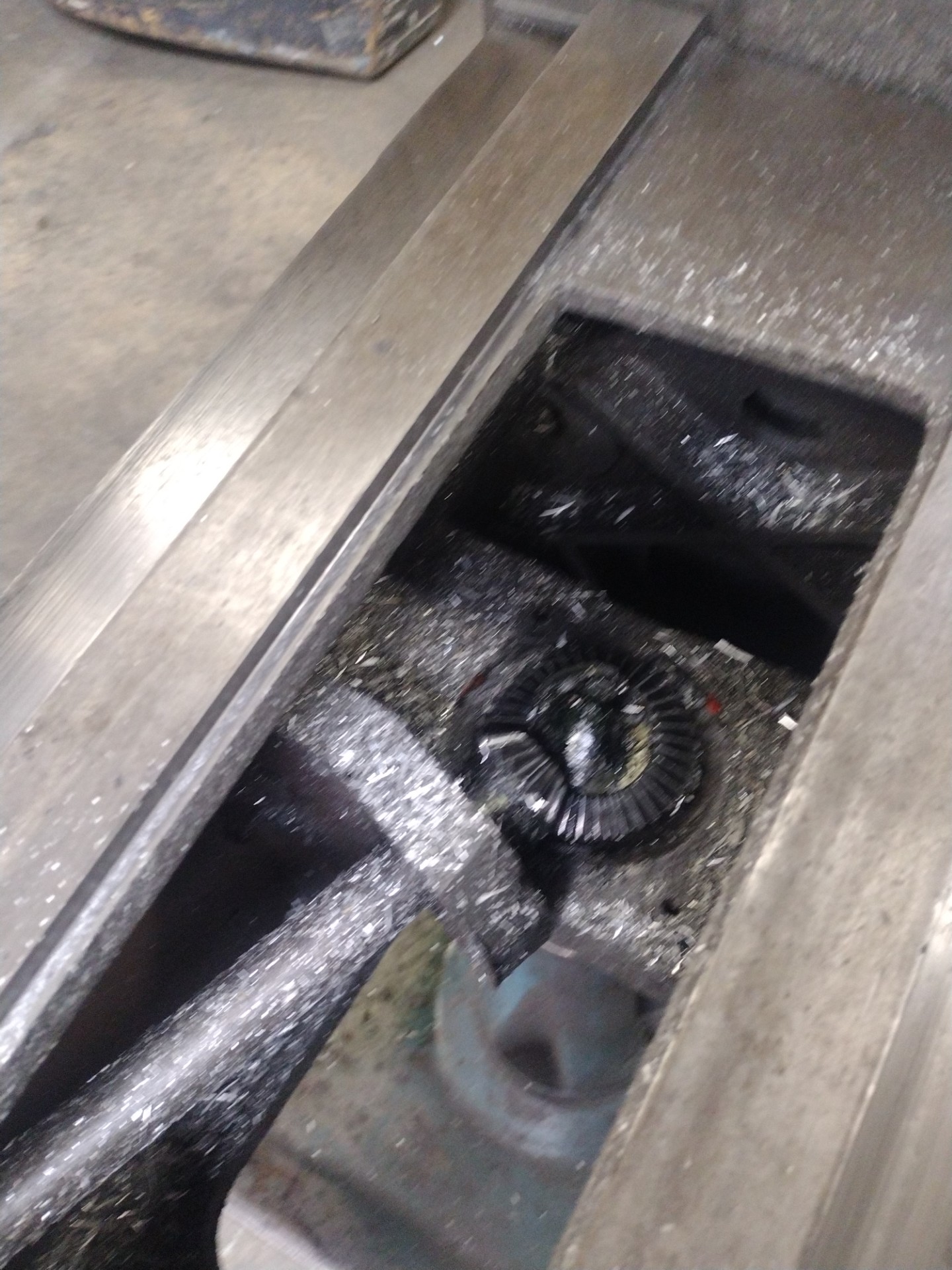

REMOVE GEAR AND SHAFT FROM HOUSING #63
-

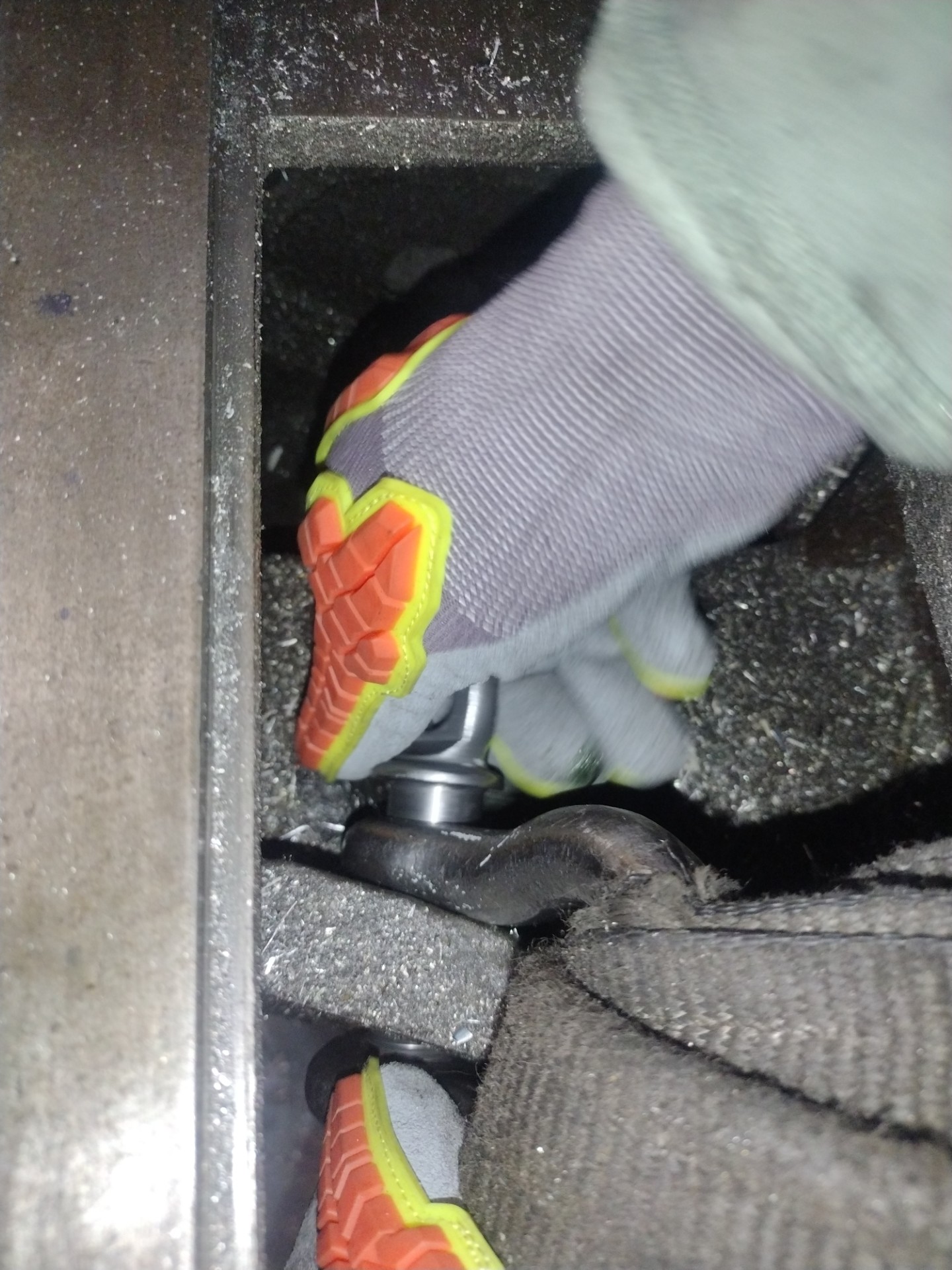

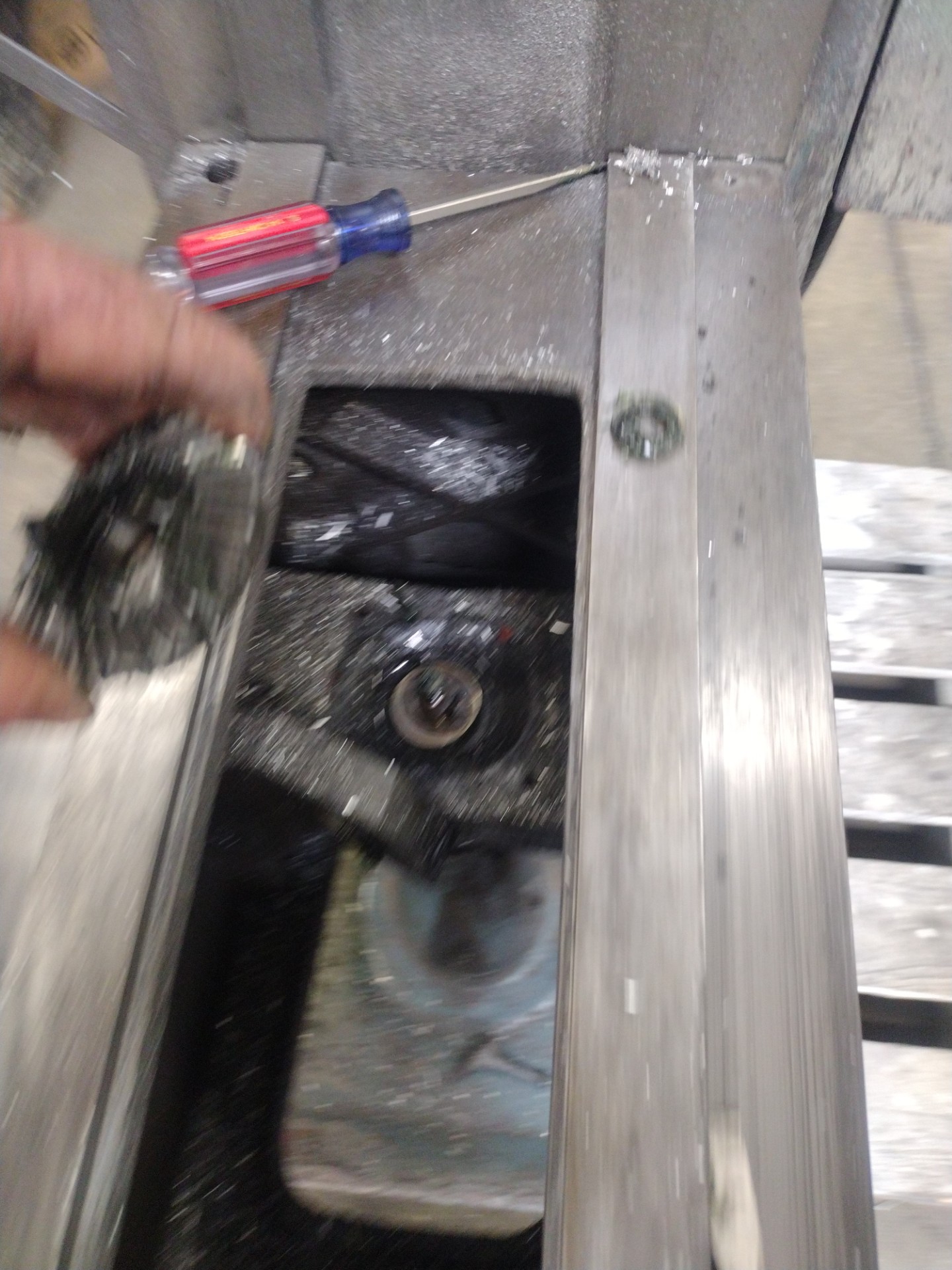

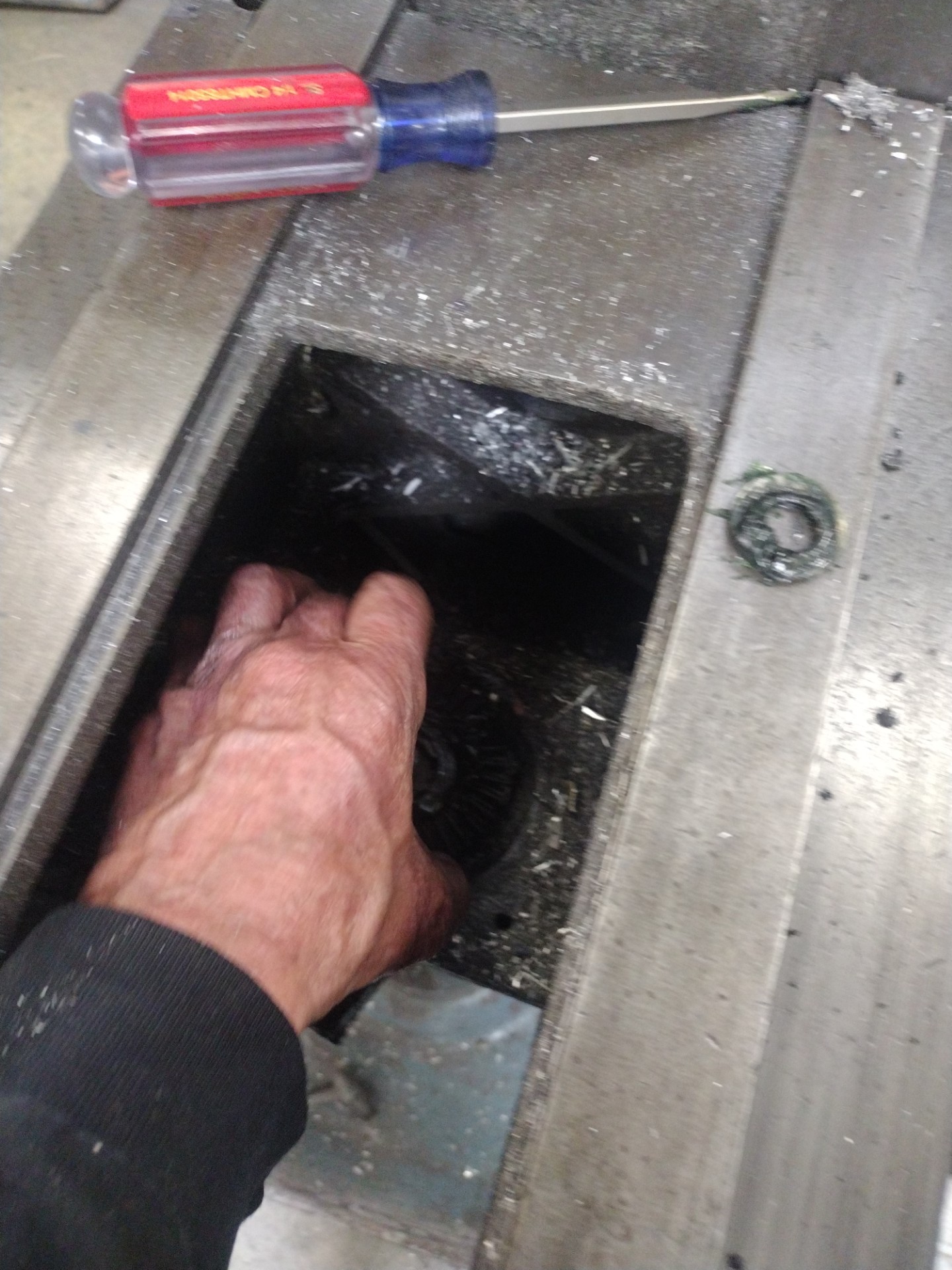

CONNECT CLEVIS TO REMOVE KNEE #72
-
SAY HI TO RAFAEL! #73
-
POSITIONING STRAPS ONTO FORKLIFT #74
-
SLOWLY APPLY UPWARD LIFT #75
-
CAREFULLY LIFT WHILE WATCHING #76
-
CONTINUE WITH CARE #77
-
CAREFULLY OBSERVE TO CLEAR VERTICAL DOVETAIL WAYS #78
-

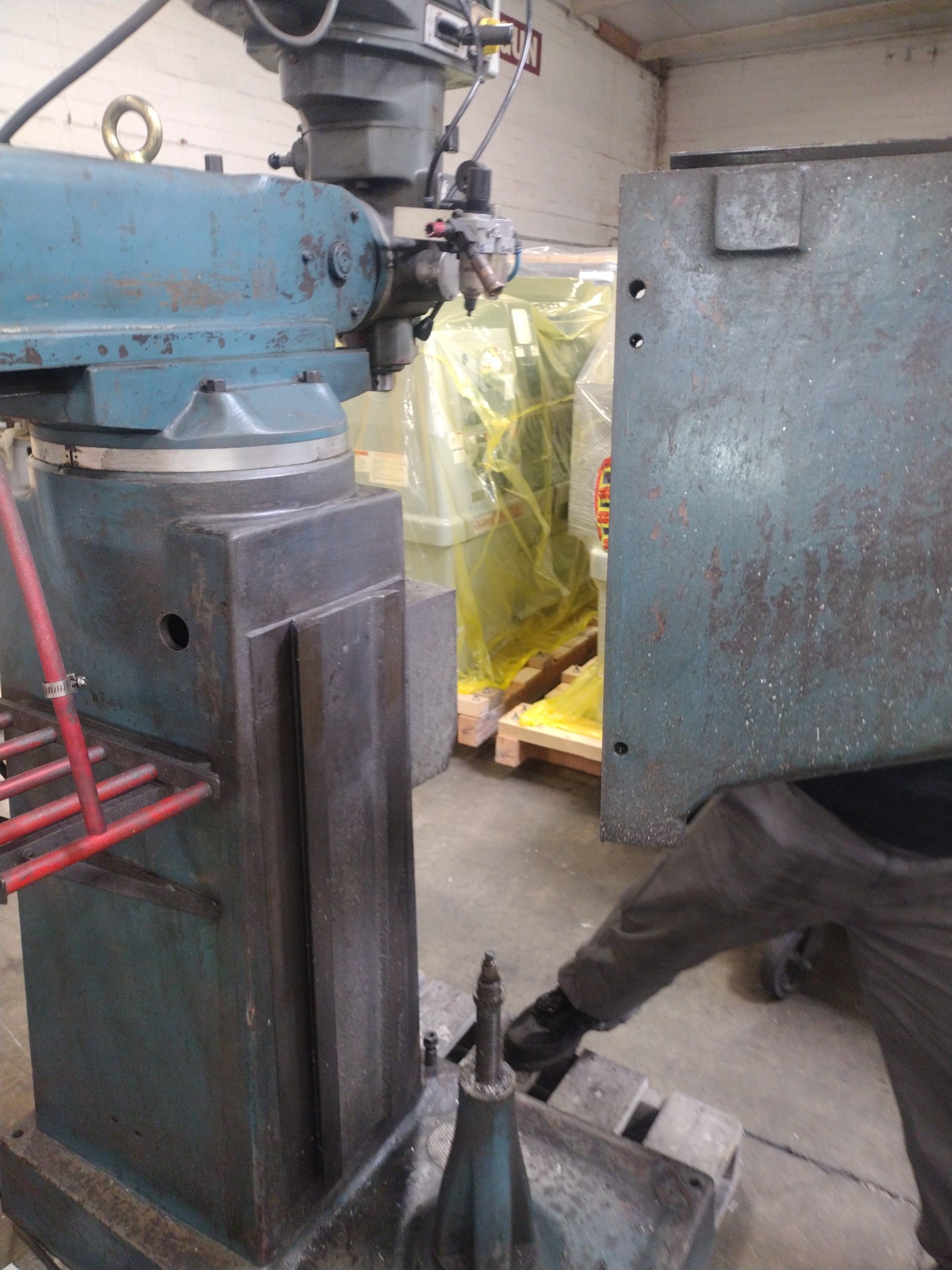

KNEE IS CLEAR #79
-

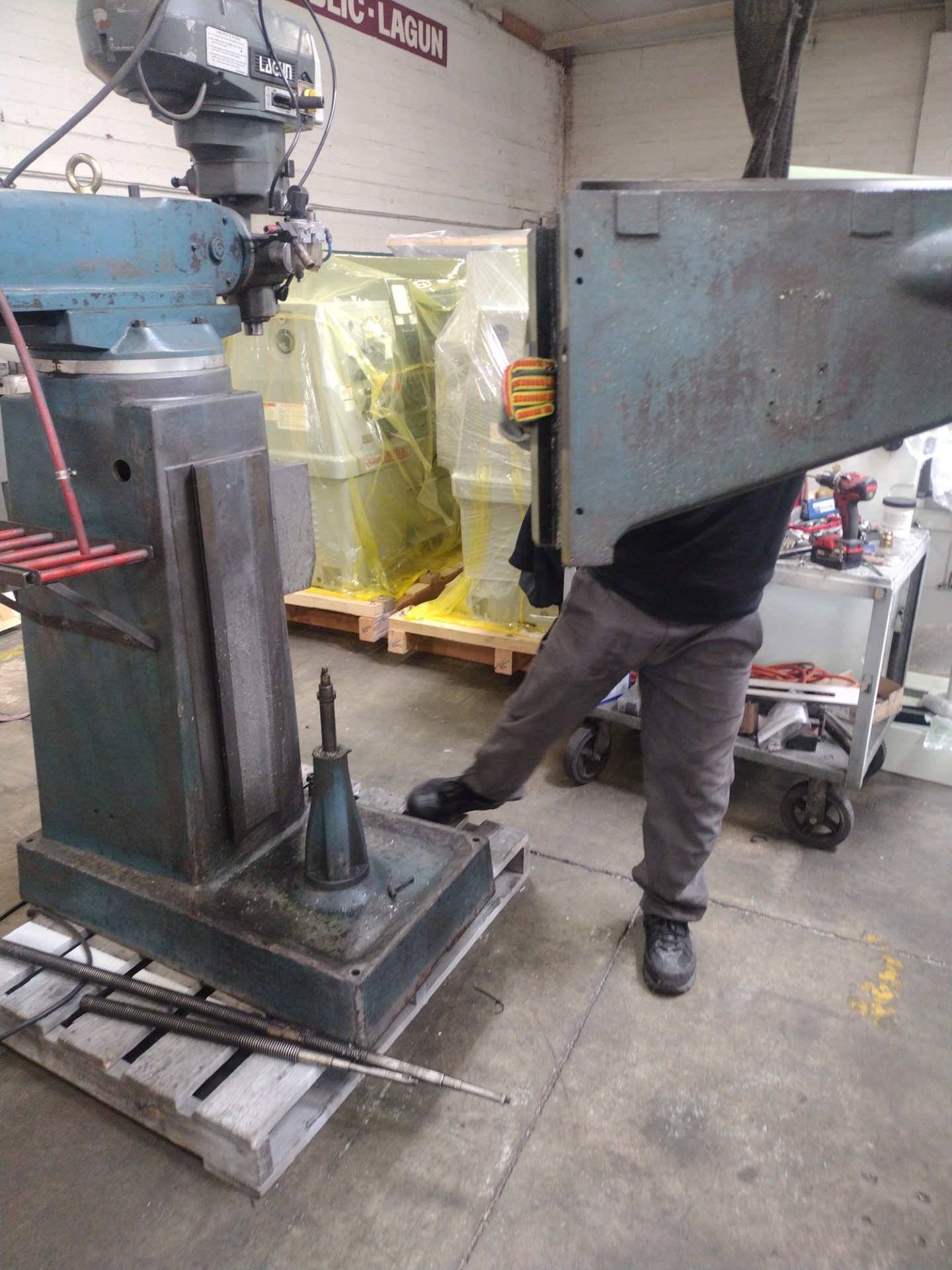

CLEAR #80
-

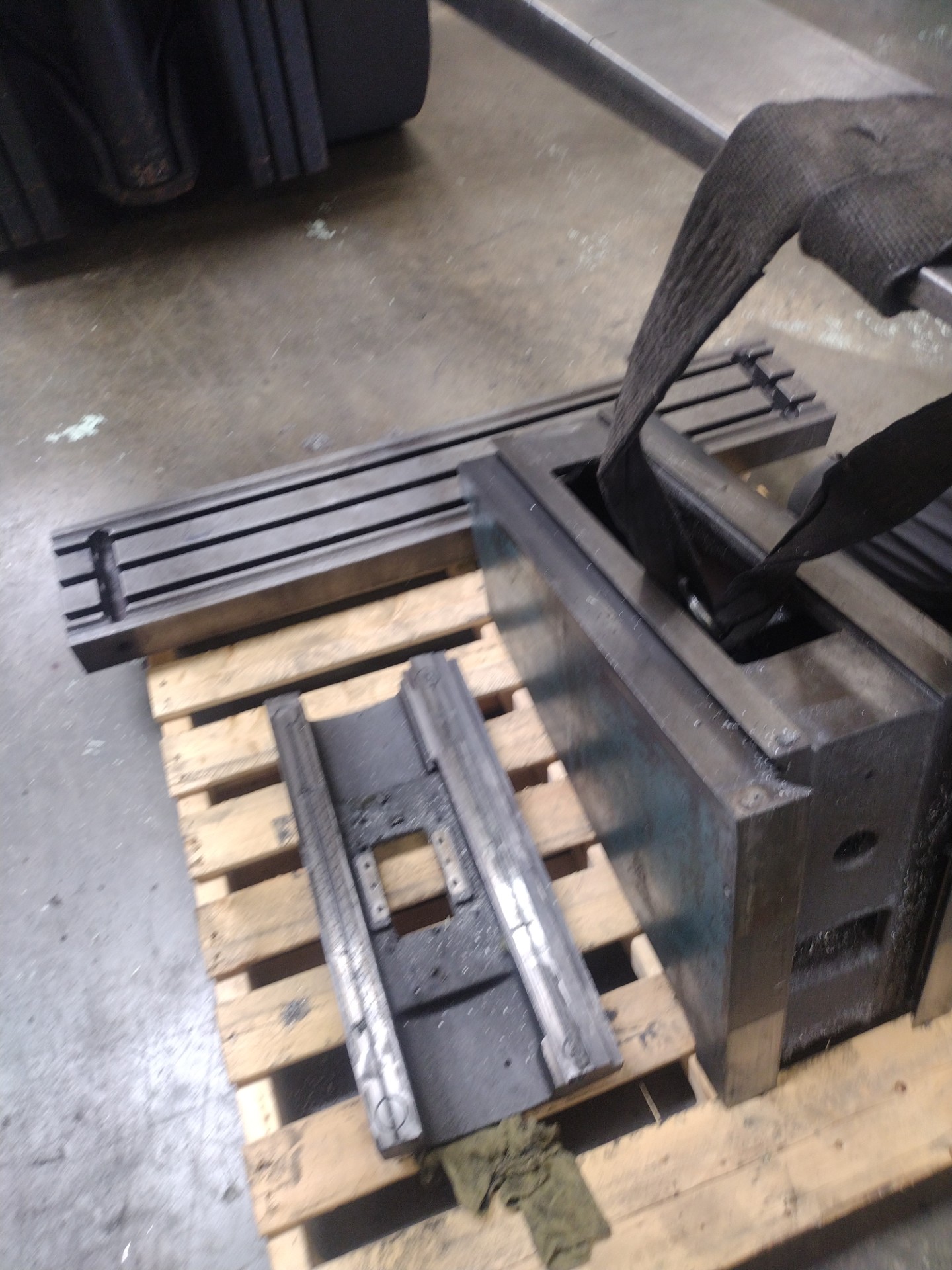

PLACE ON SKID FOR TABLE, SADDLE AND KNEE TO BE REGROUND #81
-

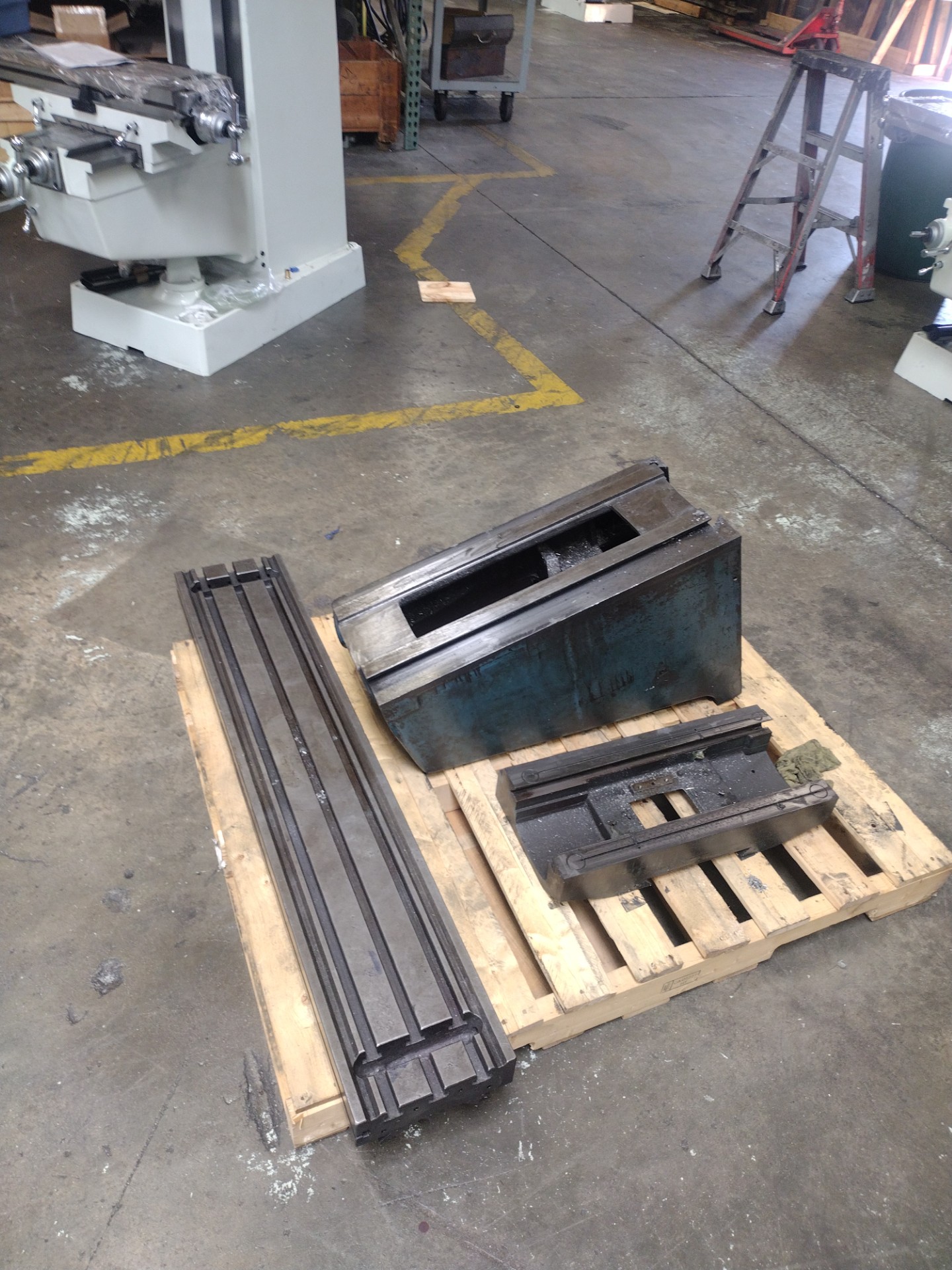

READY TO BE SECURED FOR TRANSPORT #82
-

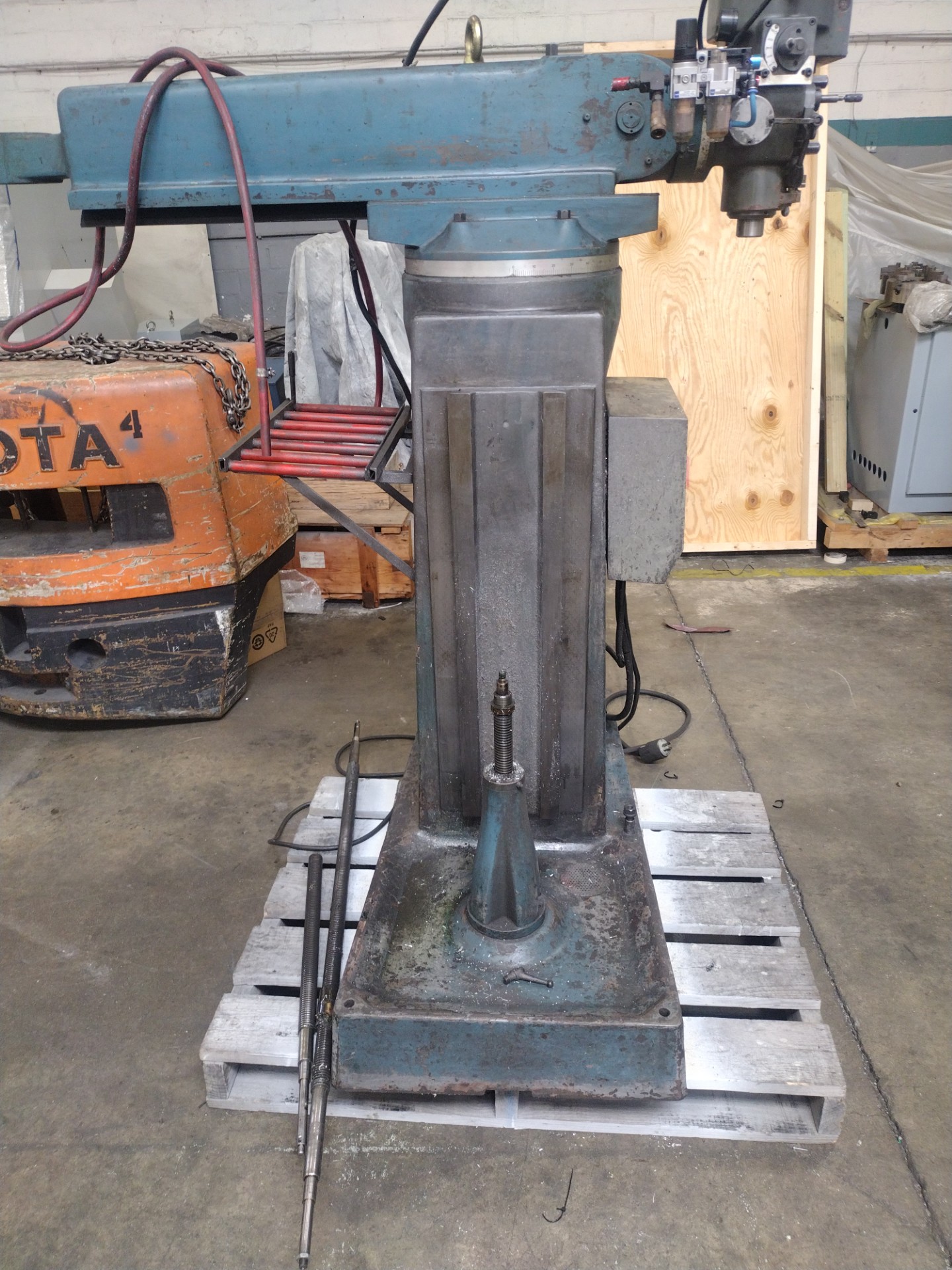

VIEW AFTER FULL DISASSEMBLY. YOU DID IT! #83
Congratulations on successfully disassembling your Lagun FTV-2 vertical mill! Click the link below to view Chapter 2- Assembly. Together, we’ll breathe new life into your machine.
