Republic Lagun Machine Tool AT 22 / 26 / 30 G TW American Turnmaster Lathes
OUTSTANDING FEATURES
- Chip and coolant tray
- 3 V way design bed casting

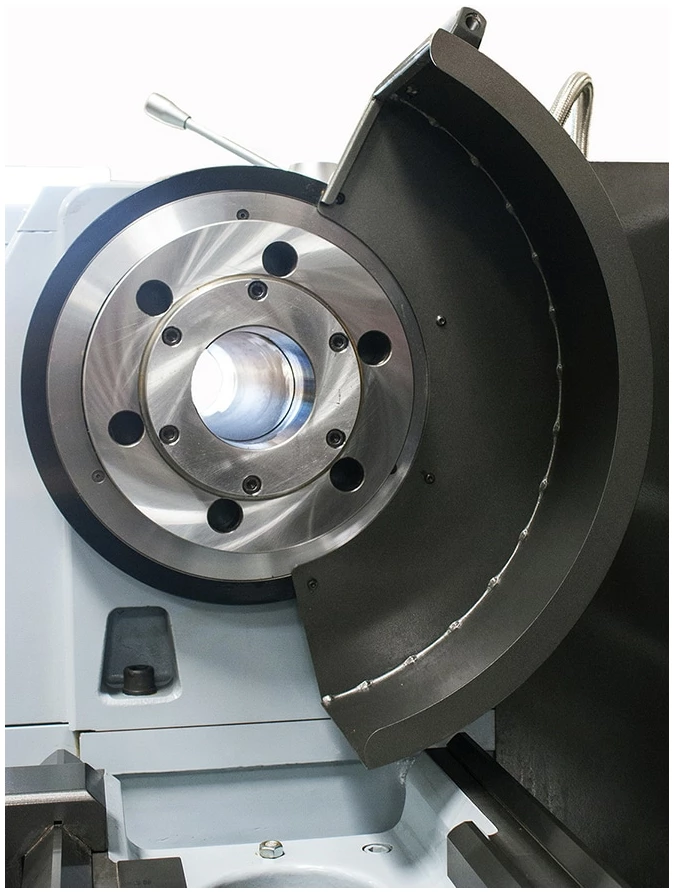

- Chuck Guard with Limit switch
- Foot brake
- Full length rear splash guard
- Manual Indexing Square 4-position tool post
- Two (2) No. 5 MT centers and One (1) main spindle No. 7 MT reduction sleeve

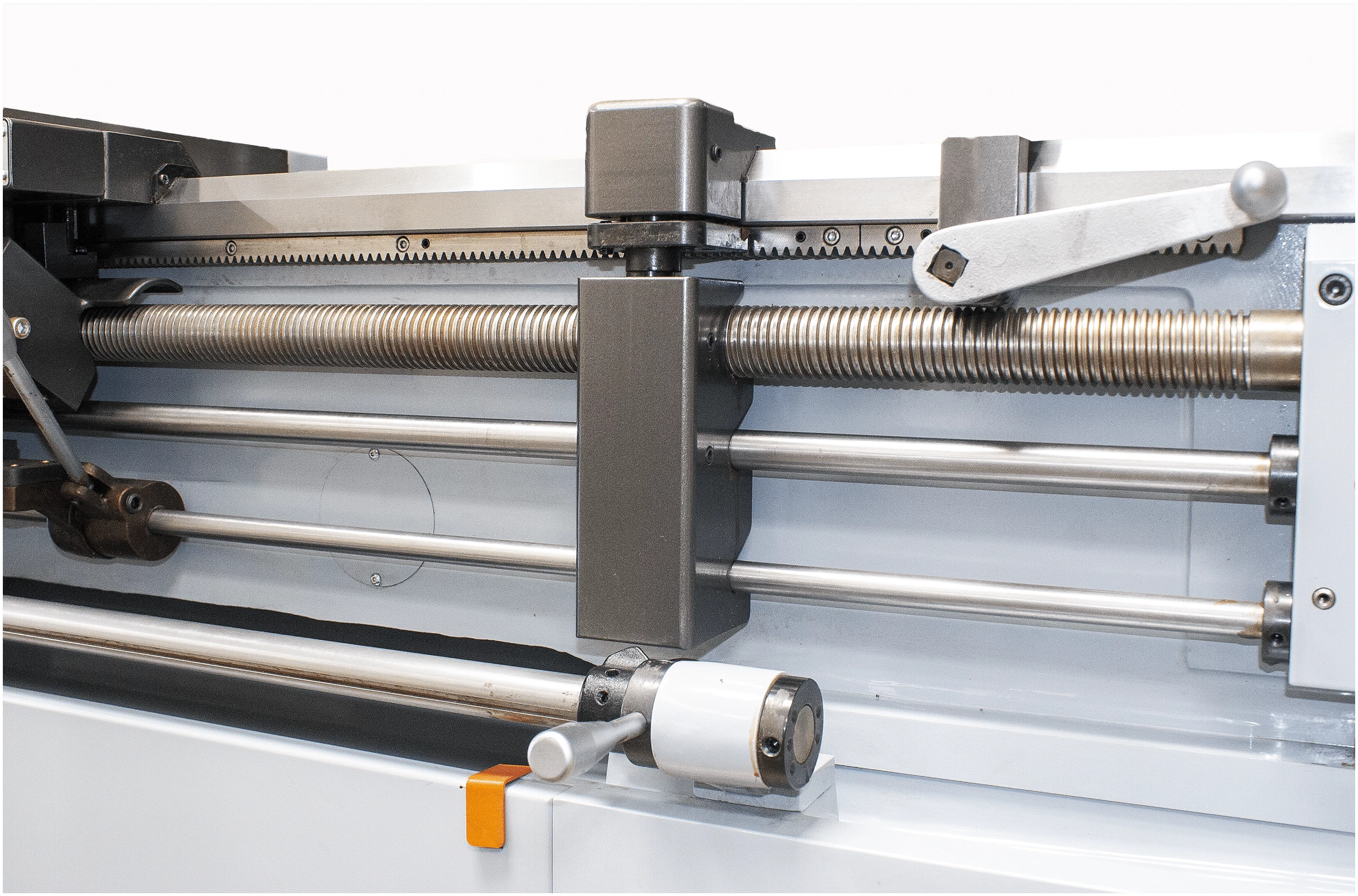

- Rapid feed motor (Z axis) for 60”; 90”; 120”; 160” & 200”
- Halogen work light
- Toolbox and manuals
- Leveling pads and bolts
- Threading dial
- Inch/metric dials on compound and cross slide (direct readings)
- 2 Speed Tailstock quill with tang
- Electrics 220/440 V, 3 phase, 60 Hz (other options available)
- Coolant system
DESCRIPTION
The Republic Lagun AT-22/26/30-G-TW, by American Turnmaster, is a High Speed Precision Lathe with swing sizes from 22″, 26″, 30″ and center distances ranging from 60″ – 200.”
*Note: Interested in other Engine Tool Room Lathes? Please take a look at our AT-2140/60/80/120-G-TW or AT-LS-28/32/36 models. Or browse all manual lathes offered by Republic Lagun here.
Check us out on Instagram for more posts and videos!
*Product color may be different than pictured
SPECIFICATIONS
| Lathes Model: | AT-1340-G-TW | AT-1550-G-TW | AT-1840/60/80/120-G-TW | AT-2140/60/80/120-G-TW | AT- 22/26/30 |
|---|---|---|---|---|---|
| Swing Over Bed | 13.39" | 15.23" | 18" | 21" | 22" / 26" / 30" |
| Swing Over Cross Slide | 8.27" | 9.37" | 11" | 14" | 13.38" / 17.21" / 21.57" |
| Distance Between Centers | 39.37" | 50" | 40"/60"/80"/119" | 40"/60"/80"/119" | 60" - 200" |
| Length of Bed | 15.75" | 19" | |||
| Spindle Speed RPM Range | 50-2570 RPM | 25-2,000 RPM | 20-1600 RPM | 20-1600 RPM | 13-1,200 RPM |
| Hole Through Spindle | 1.25" | 2.2" | 3.15" | 3.09" | 4.094" |
| Spindle Nose | D1-4 | D1-6 | D1-8 | D1-8 | D1-11 |
| Motor HP | 5 HP | 7.5 HP | 10 HP | 12.5 HP | 15HP (20HP Opt) |
| Disk Clutch Headstock | Yes | Yes | Yes | Yes | No |
| 3 V Ways | Yes | Yes | Yes | Yes | Yes |
| Quill Diameter | 1.97" | ||||
| Quill Travel | 4.41" | ||||
| Inch Thread Range (TPI) | 2-72 TPI | 2-72 TPI | 2-72 TPI | 2-72 TPI | 2-72 TPI |
| Metric Thread Range | 0.2 - 14 | 0.2 - 14 | 0.2 - 14 | 0.2 - 14 | 0.2 - 14 |
| Tailstock Spindle Taper | MT 3 | MT 4 | MT 5 | MT 5 | MT 5 |
| Digital Threading Control? | No | No | No | No | No |
| CNC or Manual | Manual | Manual | Manual | Manual | Manual |
| Voltage | 3/60/220 V |
| Lathes Model: | AT-1340-G-TW | AT-1550-G-TW | AT-1840/60/80/120-G-TW | AT-2140/60/80/120-G-TW | AT- 22/26/30 |
|---|---|---|---|---|---|
| Swing Over Bed | 13.39″ | 15.23″ | 18″ | 21″ | 22″ / 26″ / 30″ |
| Swing Over Cross Slide | 8.27″ | 9.37″ | 11″ | 14″ | 13.38″ / 17.21″ / 21.57″ |
| Distance Between Centers | 39.37″ | 50″ | 40″/60″/80″/119″ | 40″/60″/80″/119″ | 60″ – 200″ |
| Length of Bed | 15.75″ | 19″ | |||
| Spindle Speed RPM Range | 50-2570 RPM | 25-2,000 RPM | 20-1600 RPM | 20-1600 RPM | 13-1,200 RPM |
| Hole Through Spindle | 1.25″ | 2.2″ | 3.15″ | 3.09″ | 4.094″ |
| Spindle Nose | D1-4 | D1-6 | D1-8 | D1-8 | D1-11 |
| Motor HP | 5 HP | 7.5 HP | 10 HP | 12.5 HP | 15HP (20HP Opt) |
| Disk Clutch Headstock | Yes | Yes | Yes | Yes | No |
| 3 V Ways | Yes | Yes | Yes | Yes | Yes |
| Quill Diameter | 1.97″ | ||||
| Quill Travel | 4.41″ | ||||
| Inch Thread Range (TPI) | 2-72 TPI | 2-72 TPI | 2-72 TPI | 2-72 TPI | 2-72 TPI |
| Metric Thread Range | 0.2 – 14 | 0.2 – 14 | 0.2 – 14 | 0.2 – 14 | 0.2 – 14 |
| Tailstock Spindle Taper | MT 3 | MT 4 | MT 5 | MT 5 | MT 5 |
| Digital Threading Control? | No | No | No | No | No |
| CNC or Manual | Manual | Manual | Manual | Manual | Manual |
| Voltage | 3/60/220 V |
| Lathes Model: | AT-1340-G-TW | AT-1550-G-TW | AT-1840/60/80/120-G-TW | AT-2140/60/80/120-G-TW | AT- 22/26/30 |
|---|---|---|---|---|---|
| Swing Over Bed | 13.39″ | 15.23″ | 18″ | 21″ | 22″ / 26″ / 30″ |
| Swing Over Cross Slide | 8.27″ | 9.37″ | 11″ | 14″ | 13.38″ / 17.21″ / 21.57″ |
| Distance Between Centers | 39.37″ | 50″ | 40″/60″/80″/119″ | 40″/60″/80″/119″ | 60″ – 200″ |
| Length of Bed | 15.75″ | 19″ | |||
| Spindle Speed RPM Range | 50-2570 RPM | 25-2,000 RPM | 20-1600 RPM | 20-1600 RPM | 13-1,200 RPM |
| Hole Through Spindle | 1.25″ | 2.2″ | 3.15″ | 3.09″ | 4.094″ |
| Spindle Nose | D1-4 | D1-6 | D1-8 | D1-8 | D1-11 |
| Motor HP | 5 HP | 7.5 HP | 10 HP | 12.5 HP | 15HP (20HP Opt) |
| Disk Clutch Headstock | Yes | Yes | Yes | Yes | No |
| 3 V Ways | Yes | Yes | Yes | Yes | Yes |
| Quill Diameter | 1.97″ | ||||
| Quill Travel | 4.41″ | ||||
| Inch Thread Range (TPI) | 2-72 TPI | 2-72 TPI | 2-72 TPI | 2-72 TPI | 2-72 TPI |
| Metric Thread Range | 0.2 – 14 | 0.2 – 14 | 0.2 – 14 | 0.2 – 14 | 0.2 – 14 |
| Tailstock Spindle Taper | MT 3 | MT 4 | MT 5 | MT 5 | MT 5 |
| Digital Threading Control? | No | No | No | No | No |
| CNC or Manual | Manual | Manual | Manual | Manual | Manual |
| Voltage | 3/60/220 V |
* All Product Specs are Subject to Change at Any Time
One year or 2,000 hours from date of installation, (single shifting) whichever occurs first. For parts and service contact our support team at:
PARTS@LAGUN.COM
or call
800.421.2105
*Applies to domestic sales only.
