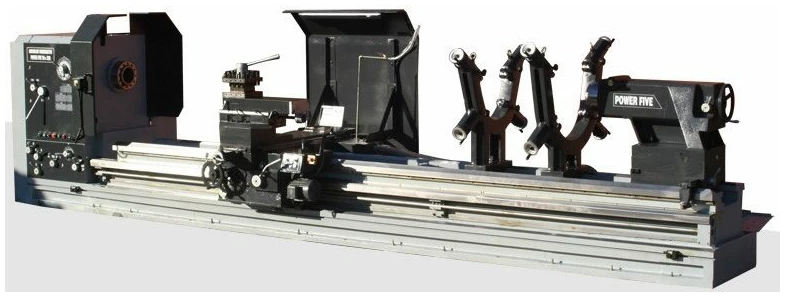

Republic Lagun Machine Tool Power 5.5 Big Bore Manual Lathe
OUTSTANDING FEATURES
• One piece (monolithic) bed, floor type casting.
• Three way design, 2 “Vee” was on top plus 1 extra front lateral way for more apron-carriage support.
• All three ways are hardened and ground.
• Forged steel spindle with opposed taper roller bearings.
• Dual chucks are optionally available
• Hardened and ground gears and shafts throughout
• Hardened and ground cross slide ways and screws.
• Electromagnetic spindle brake
• Universal inch / metric gear box, totally enclosed
• Automatic four speed electronic variable speed
• Spindle Bore standard 9” spindle nose A2-15.
Bores from 10” up to 32” are optionally available.
• Six way rapid traverse and power feed to top slide.
• Thread chasing dial
• Overload safety device on apron
• Dual voltage motor and controls, standard 50HP, optional 75HP.
• Retractable leadscrew / feed rod support on models over 120″ cc
• One piece stainless steel lead screw protection cover.
• Rear chip conveyor and full length rear splash guard is optionally available. (see optional list)
• Safety chuck guard with micro switch and jog button is standard.
DESCRIPTION
American Turnmaster’s Power 5.5 series feature bed swings that range from 60″ – 80″. The lathes have three way design, standard 9″ spindle bore, A2-15 spindle nose, and bores from 10″ up to 32″ available as options.
*Note: Interested in other Lagun Big Bore Lathes? Please take a look at our Power Five or Power One models. Or browse all manual lathes offered by Republic Lagun here.
Check us out on Instagram for more posts and videos!
SPECIFICATIONS
| Lathes Model: | Power One | Power Five | Power 5 TL 45 | Power 5 TL 50 | Power 5.5 | Pwr 7-120x295S | Pwr 7-120x295L |
|---|---|---|---|---|---|---|---|
| Swing Over Bed | 35" / 40" / 45" / 50" | 45" / 50" / 60" / 70" | 45" | 50" | 60" / 71" / 80" | 120" | 120" |
| Swing Over Carriage | 33" | 39.43" | 43" / 53" / 63" | ||||
| Swing Over Cross Slide | 24" / 29" / 34" / 39.76" | 32" / 37" / 47" / 57" | 106.29" | 94.48" | |||
| Distance Between Centers | 60" - 472" | 60" - 800" | 80" | 80" | 60" - 480" | 295.27" | 295.27" |
| Spindle Speed RPM Range | 7-1,000RPM / Varies Size | 7 - 700RPM / Varies Sizes | 7-700 RPM | 6-480 RPM | 3-300 RPM | 2-150 RPM | 2-150 RPM |
| Hole Through Spindle | 6.02" - 16.14" | 6.02" + | 6" | 9" | 9" (Opt up to 32") | 9.055" | 9.055" |
| Spindle Nose | A2-11 to A2-28 | A2-11 | A2-11 | A2-15 | A2-15 | A2-20 | A2-20 |
| Motor HP | 30HP (40HP Opt) | 30HP (40HP Opt) | 30HP | 30HP | 50HP (Opt 60HP & 75HP) | 100HP | 100HP |
| Disk Clutch Headstock | No | No | No | No | No | No | No |
| 3 V Ways | Yes | Yes | Yes | Yes | Yes | No (4 Way) | No (4 Way) |
| Inch Thread Range (TPI) | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 |
| Metric Thread Range | 1-56mm | 1-56mm | 1-56mm | 1-56mm | 1-56mm | 1-56mm | 1-56mm |
| Work Piece Capacities: | 26,790 lbs | 32,683 lbs | 66,138 lbs (w/out Steady) | 66,138 lbs (w/out Steady) | |||
| Digital Threading Control? | No | No | No | No | No | No | No |
| CNC or Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual |
| Lathes Model: | Power One | Power Five | Power 5 TL 45 | Power 5 TL 50 | Power 5.5 | Pwr 7-120x295S | Pwr 7-120x295L |
|---|---|---|---|---|---|---|---|
| Swing Over Bed | 35″ / 40″ / 45″ / 50″ | 45″ / 50″ / 60″ / 70″ | 45″ | 50″ | 60″ / 71″ / 80″ | 120″ | 120″ |
| Swing Over Carriage | 33″ | 39.43″ | 43″ / 53″ / 63″ | ||||
| Swing Over Cross Slide | 24″ / 29″ / 34″ / 39.76″ | 32″ / 37″ / 47″ / 57″ | 106.29″ | 94.48″ | |||
| Distance Between Centers | 60″ – 472″ | 60″ – 800″ | 80″ | 80″ | 60″ – 480″ | 295.27″ | 295.27″ |
| Spindle Speed RPM Range | 7-1,000RPM / Varies Size | 7 – 700RPM / Varies Sizes | 7-700 RPM | 6-480 RPM | 3-300 RPM | 2-150 RPM | 2-150 RPM |
| Hole Through Spindle | 6.02″ – 16.14″ | 6.02″ + | 6″ | 9″ | 9″ (Opt up to 32″) | 9.055″ | 9.055″ |
| Spindle Nose | A2-11 to A2-28 | A2-11 | A2-11 | A2-15 | A2-15 | A2-20 | A2-20 |
| Motor HP | 30HP (40HP Opt) | 30HP (40HP Opt) | 30HP | 30HP | 50HP (Opt 60HP & 75HP) | 100HP | 100HP |
| Disk Clutch Headstock | No | No | No | No | No | No | No |
| 3 V Ways | Yes | Yes | Yes | Yes | Yes | No (4 Way) | No (4 Way) |
| Inch Thread Range (TPI) | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 |
| Metric Thread Range | 1-56mm | 1-56mm | 1-56mm | 1-56mm | 1-56mm | 1-56mm | 1-56mm |
| Work Piece Capacities: | 26,790 lbs | 32,683 lbs | 66,138 lbs (w/out Steady) | 66,138 lbs (w/out Steady) | |||
| Digital Threading Control? | No | No | No | No | No | No | No |
| CNC or Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual |
| Lathes Model: | Power One | Power Five | Power 5 TL 45 | Power 5 TL 50 | Power 5.5 | Pwr 7-120x295S | Pwr 7-120x295L |
|---|---|---|---|---|---|---|---|
| Swing Over Bed | 35″ / 40″ / 45″ / 50″ | 45″ / 50″ / 60″ / 70″ | 45″ | 50″ | 60″ / 71″ / 80″ | 120″ | 120″ |
| Swing Over Carriage | 33″ | 39.43″ | 43″ / 53″ / 63″ | ||||
| Swing Over Cross Slide | 24″ / 29″ / 34″ / 39.76″ | 32″ / 37″ / 47″ / 57″ | 106.29″ | 94.48″ | |||
| Distance Between Centers | 60″ – 472″ | 60″ – 800″ | 80″ | 80″ | 60″ – 480″ | 295.27″ | 295.27″ |
| Spindle Speed RPM Range | 7-1,000RPM / Varies Size | 7 – 700RPM / Varies Sizes | 7-700 RPM | 6-480 RPM | 3-300 RPM | 2-150 RPM | 2-150 RPM |
| Hole Through Spindle | 6.02″ – 16.14″ | 6.02″ + | 6″ | 9″ | 9″ (Opt up to 32″) | 9.055″ | 9.055″ |
| Spindle Nose | A2-11 to A2-28 | A2-11 | A2-11 | A2-15 | A2-15 | A2-20 | A2-20 |
| Motor HP | 30HP (40HP Opt) | 30HP (40HP Opt) | 30HP | 30HP | 50HP (Opt 60HP & 75HP) | 100HP | 100HP |
| Disk Clutch Headstock | No | No | No | No | No | No | No |
| 3 V Ways | Yes | Yes | Yes | Yes | Yes | No (4 Way) | No (4 Way) |
| Inch Thread Range (TPI) | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 | 1/2 to 28 |
| Metric Thread Range | 1-56mm | 1-56mm | 1-56mm | 1-56mm | 1-56mm | 1-56mm | 1-56mm |
| Work Piece Capacities: | 26,790 lbs | 32,683 lbs | 66,138 lbs (w/out Steady) | 66,138 lbs (w/out Steady) | |||
| Digital Threading Control? | No | No | No | No | No | No | No |
| CNC or Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual |
* All Product Specs are Subject to Change at Any Time
One year or 2,000 hours from date of installation, (single shifting) whichever occurs first. For parts and service contact our support team at:
PARTS@LAGUN.COM
or call
800.421.2105
*Applies to domestic sales only.
